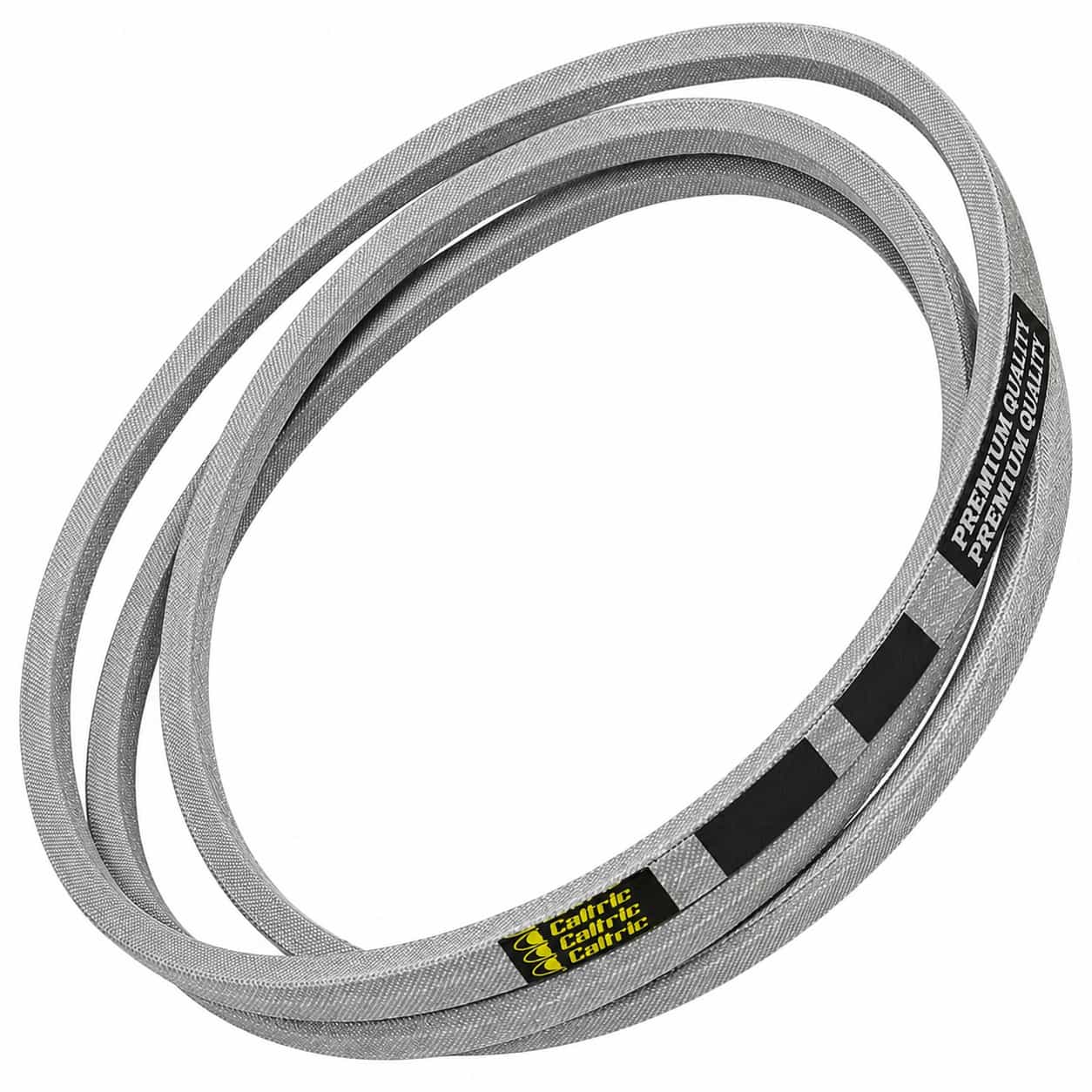

GDU10228 Deck Belt for Great Dane Chariot, EverRide, Ariens & Gravely 52-Inch and 61-Inch Mower Decks

Overview

This GDU10228 mower deck belt is a replacement deck belt for select Great Dane Chariot, EverRide, Ariens, and Gravely mower deck applications using the GDU10228 / A-GDU10228 belt path.

This belt is commonly associated with select 52-inch and 61-inch mower deck applications, including Great Dane Chariot zero-turn mower paths and EverRide Fury ZT applications listed below. Match your original belt number first, then confirm belt length, belt width, mower model, deck size, serial range, and belt routing before ordering.

Important: Do not order by deck size or mower appearance alone. The strongest confirmation is the original belt number from your mower, parts diagram, or belt routing decal.

Key Features

• Replacement mower deck belt for select 52-inch and 61-inch mower deck applications
• Primary Part Number: GDU10228
• Also Replaces: A-GDU10228
• Quantity Included: 1 replacement deck belt
• Length: 167-1/5 inches
• Width: 5/8 inch
• Thickness: 0.47 inch / 12 mm
• Designed for mower deck drive systems using the listed OEM belt path
• Ships as one belt only

Compatible Brands & Model Series

This belt is intended for select Great Dane, EverRide, Ariens, and Gravely mower deck applications using the GDU10228 / A-GDU10228 replacement belt path.

Common supplier application paths include:

• Great Dane Chariot: 992600 / GCKW2352S, 52-inch, 23 HP Kawasaki, serial number 000101 and above
• Great Dane Chariot: 992607 / GCKW2561S, 61-inch, 25 HP Kawasaki, serial number 000101 and above
• Great Dane Chariot: 992611 / GCHKW2561S, 61-inch, 25 HP Kawasaki, serial number 000101 and above
• EverRide Fury ZT: 992411, 61-inch, serial number 000101 and above

Fitment note: Model names, deck sizes, and serial ranges are provided as fitment clues only. Always confirm the original belt number, belt length, belt width, deck size, and belt routing before ordering.

Replaces OEM Deck Belt Numbers

• Great Dane: GDU10228, A-GDU10228
• EverRide: GDU10228, A-GDU10228
• Ariens: GDU10228, A-GDU10228
• Gravely: GDU10228, A-GDU10228
• A&I: GDU10228, A-GDU10228

Belt Specifications

• Part Type: mower deck belt
• Primary Replacement Number: GDU10228
• Common Cross-Reference Number: A-GDU10228
• Length: 167-1/5 inches / 4247 mm
• Width: 5/8 inch
• Thickness: 0.47 inch / 12 mm
• Quantity Included: 1 replacement deck belt

Before Ordering

Before ordering this deck belt, confirm:

• Your original belt number matches GDU10228 or A-GDU10228
• Your mower deck uses the correct belt routing
• Your mower model, deck size, and serial range match the listed application path
• Your idler pulleys, spindle pulleys, belt guides, and tension spring are in good condition
• Your original belt length and width match the listed specifications

Do not install the belt until fitment is confirmed. Installed belts may not be eligible for return.

Common Symptoms of a Worn Deck Belt

• Deck belt slips under load
• Belt squeals when the blades are engaged
• Mower leaves uneven or uncut grass
• Belt jumps off the pulley system
• Visible cracking, glazing, or fraying
• Deck vibration or poor blade speed
• Burning rubber smell near the mower deck

Installation Notes

• Park the mower on a level surface and disconnect the spark plug before working on the deck
• Take a photo of the belt routing before removing the old belt
• Inspect idler pulleys, spindle pulleys, belt keepers, and the tension spring before installing the new belt
• Make sure the belt is seated fully in each pulley groove
• After installation, test the mower at low speed and listen for belt tracking issues, squealing, or vibration

Why Buy From PTO Direct USA?

• Fast USA shipping
• Fitment-first product descriptions
• Clear part-number routing for mower deck repairs
• Deck parts organized by belts, blades, spindles, pulleys, and rebuild kits
• Support for homeowners, repair shops, and mower owners

Need Help Confirming Fitment?

If you are unsure whether this belt fits your mower, send us your mower model number, deck size, original belt number, serial number, and photos of your belt routing diagram, mower ID tag, and old belt before ordering.

FAQ

What does this deck belt replace?

This belt replaces GDU10228 and A-GDU10228 on select Great Dane, EverRide, Ariens, Gravely, and A&I mower deck applications using the same belt path.

What size is this belt?

This belt is listed at 167-1/5 inches long, 5/8 inch wide, and 0.47 inch thick. Always compare these specs to your original belt before ordering.

Does this belt fit Great Dane Chariot mowers?

This belt is commonly listed for select Great Dane Chariot 52-inch and 61-inch mower deck applications including 992600, 992607, and 992611 paths. Confirm your original belt number, serial range, and deck routing before ordering.

Does this belt fit EverRide Fury ZT models?

This belt is commonly listed for select EverRide Fury ZT 61-inch applications including 992411 with serial number 000101 and above. Confirm your original belt number before ordering.

Can I order this belt by deck size only?

No. Deck size is only a starting point. Match the original belt number, belt length, belt width, mower model, serial range, and belt routing before ordering.

Why does my deck belt keep coming off?

A deck belt may come off because of worn idler pulleys, bad spindle bearings, weak tension springs, bent belt guides, incorrect routing, or the wrong belt size. Inspect the full deck drive system before installing a new belt.
