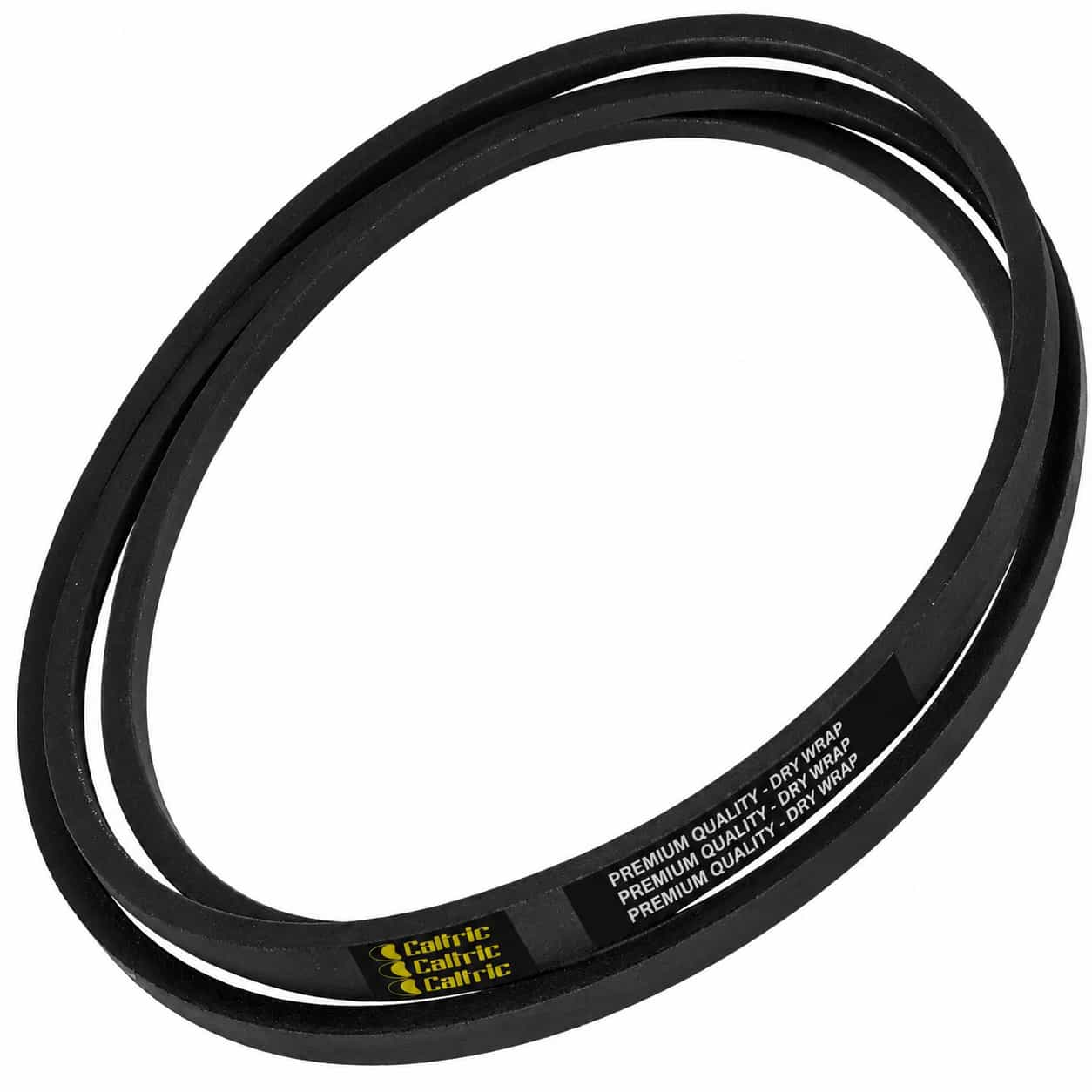

754-05087A Deck Belt for Cub Cadet, Troy-Bilt, MTD, Ryobi & Hustler 46-Inch Mower Decks

Overview

This 754-05087A mower deck belt is a replacement deck belt for select Cub Cadet, Troy-Bilt, MTD, Ryobi, and Hustler mower deck applications using the listed belt replacement path.

This belt also replaces 954-05087A, 75405022A, 95405022A, and 607059 on supported applications. It is commonly associated with select 46-inch Cub Cadet XT1 / XT2, Troy-Bilt Super Bronco XP, MTD / Craftsman 46-inch tractor, Ryobi 46-inch tractor, and select 42-inch Hustler Dash / Dash XD mower deck paths.

Important: This is a multi-brand belt path. Do not order by mower brand or deck size alone. Match your original belt number first, then confirm belt length, belt width, mower model, deck size, serial range, and belt routing before ordering.

Key Features

• Replacement mower deck belt for select Cub Cadet, Troy-Bilt, MTD, Ryobi, and Hustler deck applications
• Primary Part Number: 754-05087A
• Common MTD / Cub Cadet Replacement Number: 954-05087A
• Additional Replacement Paths: 75405022A, 95405022A, 607059
• Quantity Included: 1 replacement deck belt
• Length: 108-1/2 inches
• Width: 1/2 inch
• Thickness: 0.3 inch
• Designed for mower deck drive systems using the listed OEM belt path

Compatible Brands & Model Series

This belt is intended for select mower decks using the 754-05087A, 954-05087A, 75405022A, 95405022A, or 607059 belt path.

Common supplier application paths include:

• Cub Cadet XT1 / XT2: select 46-inch fabricated deck applications including XT1-LT 46 EFI FAB, XT1-LT 46 FAB, XT2-LX 46, and XT2-LX 46 EFI FAB paths
• Troy-Bilt: select 46-inch Super Bronco XP, Super Bronco Hydro, and TB2246 Hydro tractor applications
• MTD / Craftsman: select 46-inch T225, T240, T2800, T3100, T8200, T8600, and related tractor applications
• Ryobi: select 46-inch T8200, T8600, CYT4622SE, and related tractor applications
• Hustler: select 42-inch Dash and Dash XD mower deck applications using the 607059 belt path

Fitment note: Model names are provided as fitment clues only. Always confirm the original belt number, deck size, serial range, and belt routing before ordering.

Replaces Common Deck Belt Numbers

• MTD: 754-05087A, 954-05087A, 75405022A, 95405022A
• Cub Cadet: 754-05087A, 954-05087A
• Hustler: 607059

No-Dash Search Aliases

• 75405087A
• 95405087A
• 75405022A
• 95405022A

Belt Specifications

• Part Type: mower deck belt
• Primary Replacement Number: 754-05087A
• Common Cross-Reference Numbers: 954-05087A, 75405022A, 95405022A, 607059
• Length: 108-1/2 inches / 2755.9 mm
• Width: 1/2 inch / 12.7 mm
• Thickness: 0.3 inch / 8 mm
• Quantity Included: 1 replacement deck belt

Before Ordering

Before ordering this belt, confirm:

• Your original belt number matches 754-05087A, 954-05087A, 607059, or one of the listed replacement numbers
• Your mower deck uses the correct belt routing
• Your mower model, deck size, and serial range match the listed application path
• Your idler pulleys, spindle pulleys, belt guides, and tension spring are in good condition
• Your original belt length and width match the listed specifications

Do not install the belt until fitment is confirmed. Installed belts may not be eligible for return.

Common Symptoms of a Worn Deck Belt

• Deck belt slips under load
• Belt squeals when the blades are engaged
• Mower leaves uneven or uncut grass
• Belt jumps off the pulley system
• Visible cracking, glazing, or fraying
• Deck vibration or poor blade speed
• Burning rubber smell near the mower deck

Installation Notes

• Park the mower on a level surface and disconnect the spark plug before working on the deck
• Take a photo of the belt routing before removing the old belt
• Inspect idler pulleys, spindle pulleys, belt keepers, and the tension spring before installing the new belt
• Make sure the belt is seated fully in each pulley groove
• After installation, test the mower at low speed and listen for belt tracking issues, squealing, or vibration

Why Buy From PTO Direct USA?

• Fast USA shipping
• Fitment-first product descriptions
• Clear part-number routing for mower deck repairs
• Deck parts organized by belts, blades, spindles, pulleys, and rebuild kits
• Support for homeowners, repair shops, and mower owners

Need Help Confirming Fitment?

If you are unsure whether this belt fits your mower, send us your mower model number, deck size, original belt number, serial number, and photos of your belt routing diagram, mower ID tag, and old belt before ordering.

FAQ

What does this deck belt replace?

This belt replaces the 754-05087A and 954-05087A MTD / Cub Cadet belt path, plus related numbers including 75405022A, 95405022A, and 607059.

What size is this belt?

This belt is listed at 108-1/2 inches long, 1/2 inch wide, and 0.3 inch thick. Always compare these specs to your original belt before ordering.

Does this belt fit Cub Cadet XT1 or XT2 models?

This belt is commonly listed for select Cub Cadet XT1 and XT2 46-inch fabricated deck applications using the 754-05087A / 954-05087A belt path. Confirm your exact model number, deck type, and belt routing before ordering.

Does this belt fit Troy-Bilt Super Bronco XP models?

This belt is commonly listed for select Troy-Bilt 46-inch Super Bronco XP and related 46-inch tractor applications. Match your original belt number and mower model before ordering.

Does this belt fit Hustler Dash models?

This belt is commonly listed for select Hustler 42-inch Dash and Dash XD applications using the 607059 belt path. Confirm your original belt number and deck routing before ordering.

Can I order this belt by deck size only?

No. Deck size is only a starting point. This belt appears across multiple brands and deck sizes, so match the original belt number, belt length, belt width, mower model, serial range, and belt routing before ordering.

Why does my deck belt keep coming off?

A deck belt may come off because of worn idler pulleys, bad spindle bearings, weak tension springs, bent belt guides, incorrect routing, or the wrong belt size. Inspect the full deck drive system before installing a new belt.
