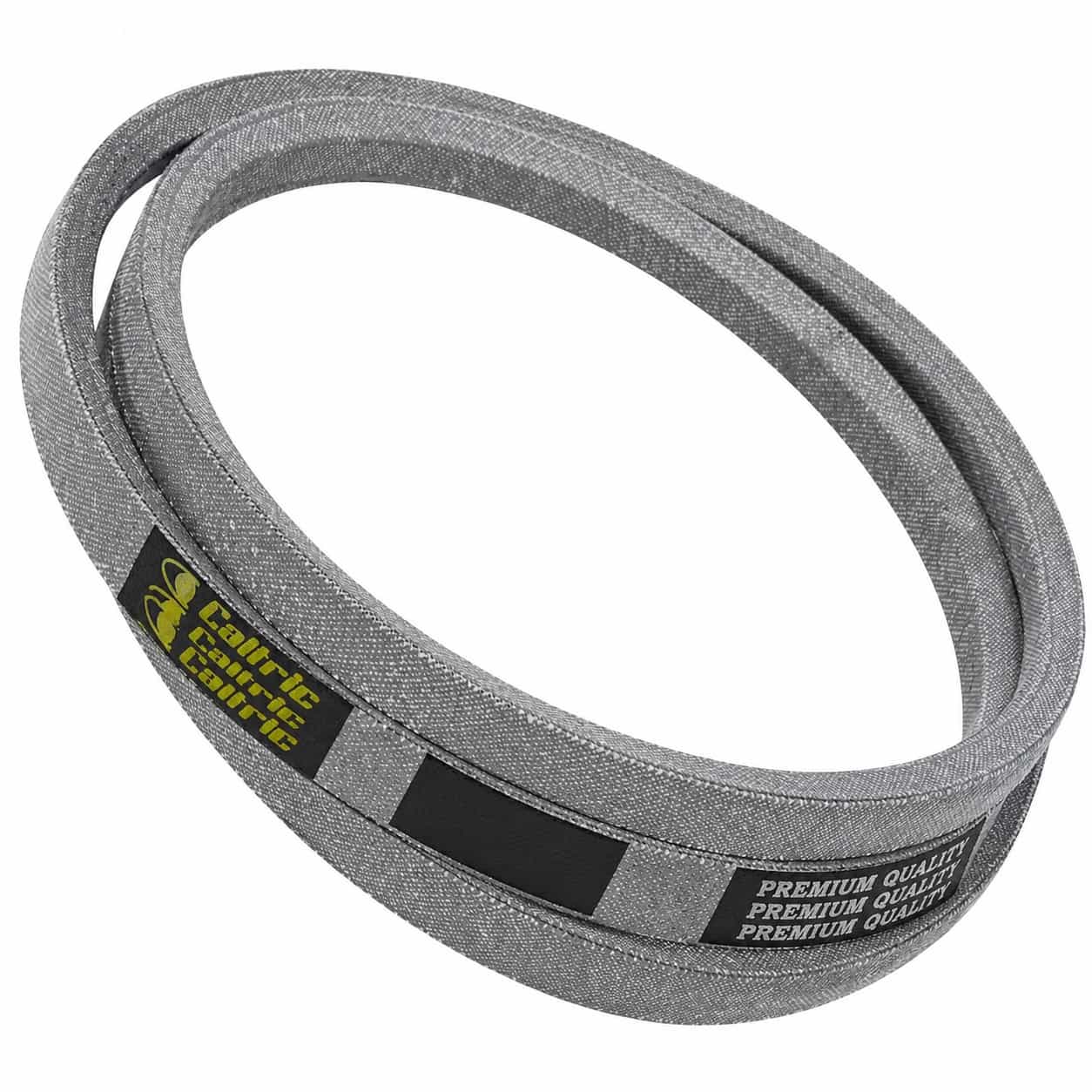

754-0164 Deck Belt for MTD, Cub Cadet, John Deere, Ariens & Simplicity Mower Decks | Replaces 1719731

Overview

This 754-0164 mower deck belt is a replacement belt for select MTD, Cub Cadet, White Outdoor, Ariens, Gravely, Simplicity, and John Deere mower deck and attachment applications using the listed belt replacement path.

This belt also replaces 954-0164, 1719731, 1747359, 754-0347, 954-0347, M112006, M86422, M91147, and several related OEM belt numbers listed below. It is commonly associated with select 30-inch, 32-inch, 38-inch, and 46-inch mower deck paths, along with certain bagger and blower assembly belt applications.

Important: This is a broad multi-brand belt path. Do not order by mower brand or deck size alone. Match your original belt number first, then confirm belt length, belt width, mower model, deck size, attachment type, serial range, and belt routing before ordering.

Key Features

• Replacement belt for select mower deck, drive, bagger, and blower assembly applications
• Primary Part Number: 754-0164
• Common MTD Replacement Number: 954-0164
• Additional Replacement Paths: 1719731, 1747359, 754-0347, 954-0347
• Quantity Included: 1 replacement belt
• Length: 63 inches
• Width: 1/2 inch
• Thickness: 0.3 inch
• Designed for mower belt systems using the listed OEM belt path

Compatible Brands & Model Series

This belt is intended for select mower and attachment applications using the 754-0164, 954-0164, 1719731, 754-0347, M112006, or related belt path.

Common supplier application paths include:

• MTD: select 32-inch riding mower and lawn tractor applications from 1990–1991 model paths
• Cub Cadet: select 32-inch and 38-inch tractor applications including 1002, 1225, 1315, 1320, 1325, 1330, 1405, 1415, 1420, 1430, 1715, 1720, 1730, 331, 441, and 804 paths
• White Outdoor: select 32-inch and 42-inch applications including R-10 and Z-16 paths
• Ariens: select Zoom, Mini-Zoom, ZT XL, Compact-Z, EZR, and bagger / blower assembly applications
• Gravely: select ZT, Mini ZT, XL Series, EverRide, and bagger / blower assembly applications
• Simplicity: select Broadmoor and related lawn tractor applications using the listed Simplicity belt path
• John Deere: select 30-inch and 46-inch riding mower and lawn tractor applications using M112006, M86422, or M91147 belt paths

Fitment note: Model names are provided as fitment clues only. Always confirm the original belt number, deck size, attachment type, serial range, and belt routing before ordering.

Replaces Common Belt Numbers

• MTD: 1651-051, 754-0164, 754-0347, 954-0164, 954-0347
• Cub Cadet: 754-0347, 754-3036, 954-0347, 954-3036
• White Outdoor: 32-0009962
• Ariens: 07212800
• Simplicity: 101007, 101007SM, 108151, 108151SM, 156120, 156120SM, 2025879, 2025879SM, 2156120, 2156120SM
• John Deere: M112006, M86422, M91147
• Additional references: 1719731, 1747359

No-Dash Search Aliases

• 7540164
• 9540164
• 7540347
• 9540347
• 7543036
• 9543036
• 320009962

Belt Specifications

• Part Type: mower belt
• Primary Replacement Number: 754-0164
• Common Cross-Reference Numbers: 954-0164, 1719731, 1747359, 754-0347, 954-0347, M112006, M86422, M91147
• Length: 63 inches / 1600.2 mm
• Width: 1/2 inch / 12.7 mm
• Thickness: 0.3 inch / 8 mm
• Quantity Included: 1 replacement belt

Before Ordering

Before ordering this belt, confirm:

• Your original belt number matches 754-0164, 954-0164, or one of the listed replacement numbers
• Your mower deck, drive system, bagger, or blower assembly uses the correct belt routing
• Your mower model, deck size, attachment type, and serial range match the listed application path
• Your idler pulleys, spindle pulleys, belt guides, and tension spring are in good condition
• Your original belt length and width match the listed specifications

Do not install the belt until fitment is confirmed. Installed belts may not be eligible for return.

Common Symptoms of a Worn Belt

• Belt slips under load
• Belt squeals when the blades or attachment are engaged
• Mower leaves uneven or uncut grass
• Belt jumps off the pulley system
• Visible cracking, glazing, or fraying
• Deck vibration or poor blade speed
• Burning rubber smell near the deck or drive system

Installation Notes

• Park the mower on a level surface and disconnect the spark plug before working on the deck or belt drive
• Take a photo of the belt routing before removing the old belt
• Inspect idler pulleys, spindle pulleys, belt keepers, and the tension spring before installing the new belt
• Make sure the belt is seated fully in each pulley groove
• After installation, test the mower at low speed and listen for belt tracking issues, squealing, or vibration

Why Buy From PTO Direct USA?

• Fast USA shipping
• Fitment-first product descriptions
• Clear part-number routing for mower deck repairs
• Deck parts organized by belts, blades, spindles, pulleys, and rebuild kits
• Support for homeowners, repair shops, and mower owners

Need Help Confirming Fitment?

If you are unsure whether this belt fits your mower, send us your mower model number, deck size, attachment type, original belt number, serial number, and photos of your belt routing diagram, mower ID tag, and old belt before ordering.

FAQ

What does this belt replace?

This belt replaces the 754-0164 and 954-0164 MTD belt path, plus related numbers including 1719731, 1747359, 754-0347, 954-0347, M112006, M86422, M91147, 07212800, and 101007.

What size is this belt?

This belt is listed at 63 inches long, 1/2 inch wide, and 0.3 inch thick. Always compare these specs to your original belt before ordering.

Can I order this belt by deck size only?

No. Deck size is only a starting point. This belt appears across multiple brands, deck sizes, and attachment applications, so match the original belt number, belt length, belt width, mower model, serial range, and belt routing before ordering.

Does this belt fit Cub Cadet mower decks?

This belt is commonly listed for select Cub Cadet 32-inch and 38-inch tractor applications using the 754-0347 / 954-0347 and related belt paths. Confirm your model number, serial range, original belt number, and routing before ordering.

Does this belt fit John Deere mower decks?

This belt is commonly listed for select John Deere 30-inch and 46-inch mower applications using M112006, M86422, or M91147 belt paths. Confirm your original belt number before ordering.

Is this only a mower deck belt?

No. Depending on the mower brand and model, this belt may be used as a deck belt, drive belt, engine belt, bagger belt, or blower assembly belt. Match the original belt number and routing before ordering.

Why does my belt keep coming off?

A belt may come off because of worn idler pulleys, bad spindle bearings, weak tension springs, bent belt guides, incorrect routing, or the wrong belt size. Inspect the full belt drive system before installing a new belt.
