02000653 Deck Belt for Cub Cadet Z-Force 50, Z-Force 54 & Enforcer 54
02000653 Deck Belt for Cub Cadet Z-Force 50, Z-Force 54 & Enforcer 54
Overview

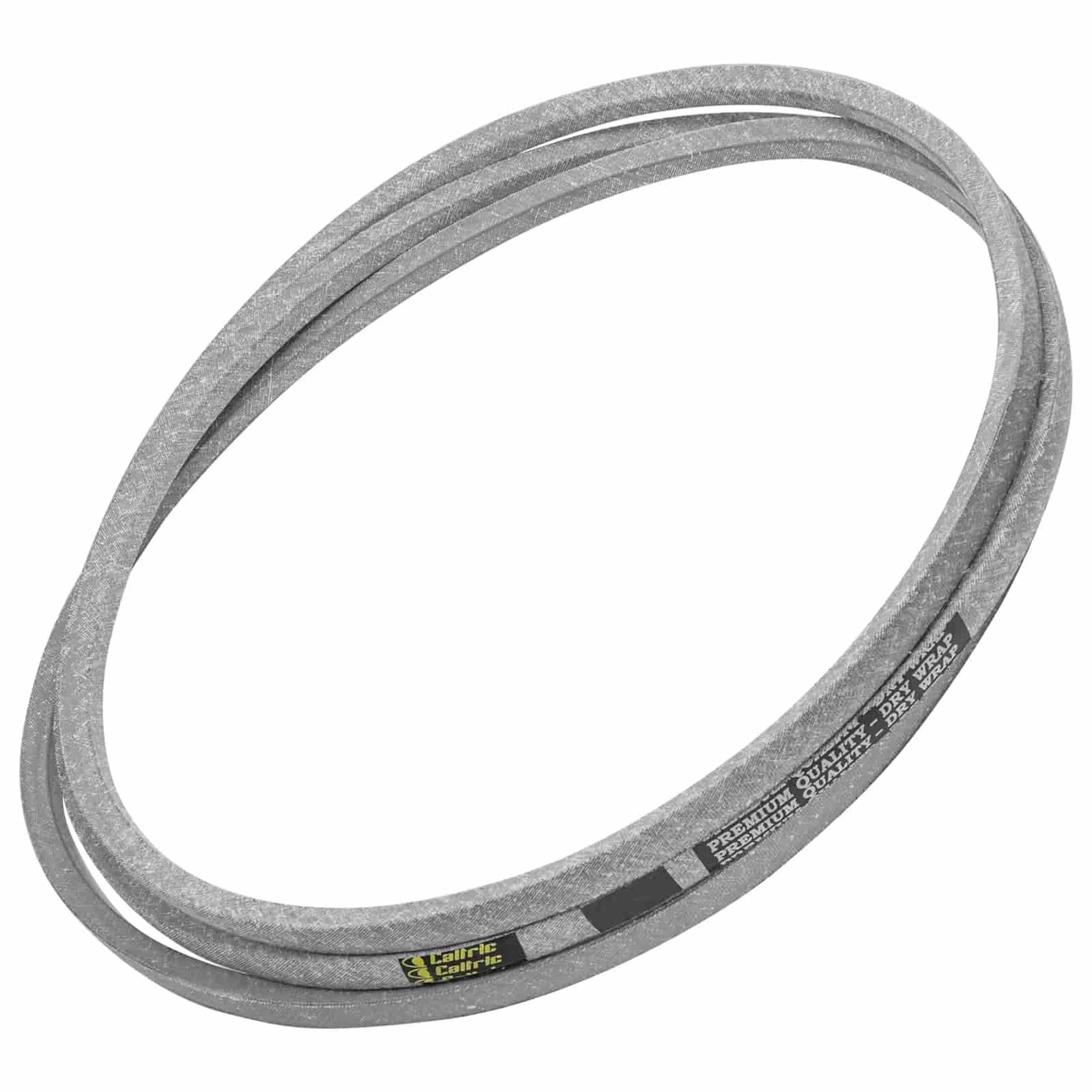

This 02000653 deck spindle belt replacement fits select Cub Cadet, MTD, and Craftsman zero-turn mowers using the 02000653 spindle-drive belt path.
Compatible applications include select Cub Cadet Z-Force 48, Z-Force 50, Z-Force 54, Enforcer 54, Tank M50-KHS, and Z-Force Pro mower families, along with the Craftsman ZTL7500.
Important: This is the spindle-drive deck belt that routes around the mower deck pulleys. It is not the separate PTO belt running from the engine clutch to the deck, and it is not the hydrostatic transmission belt. Match the original belt number and complete mower model number before ordering.
Key Features
- Aftermarket deck spindle belt replacement
- Primary OEM Part Number: 02000653
- Replaces: 2000653 and OCC-02000653
- OEM Nominal Length: 90.9 inches
- Supplier-Stated Length: Approximately 91 inches
- Top Width: 1/2 inch
- Supplier-Stated Thickness: Approximately 0.36 inch
- Belt Type: Wrapped V-belt
- Cord Material: Polyester
- Quantity: One deck belt
Compatible Cub Cadet Models
Cub Cadet Z-Force 50
- 17AF3AGP010
- 17AH3AGP709
- 17AH3AGP710
- 53AA5B7P709
- 53AA5B7P710
- 53AA5B7P712
Cub Cadet Z-Force 48
- 17BF3AGV010 – confirmed 2010 deck path
Cub Cadet Z-Force 54
- 17BF3AGX010 – select 2011 through 2013 deck paths
Cub Cadet Enforcer 54
- 53AH3AGT050
- 53AI3AGT750
- 53BI3AGT050
Cub Cadet Tank M50-KHS
- 53AB5BBP750
- 53BB5BBP750
Cub Cadet Z-Force Pro
- Z-Force Pro 48-KH model 53BH3AGN050
- Z-Force Pro 54-KH model 53BH3AGT050
Additional Compatible Models
- Craftsman ZTL7500 model 247.250030
- MTD model 17AL3AGV099
Additional mower models may use this belt when the original parts diagram specifically shows 02000653. Do not order using deck size or mower-family name alone.
Replaces These Part Numbers
- 02000653
- 2000653
- OCC-02000653
Belt Specifications
- Length: 90.9 inches nominal
- Aftermarket Listed Length: Approximately 91 inches
- Top Width: 1/2 inch
- Thickness: Approximately 0.36 inch
- Application: Deck spindle drive
- Quantity: One belt
Before Ordering
- Confirm the original belt number is 02000653, 2000653, or OCC-02000653.
- Confirm the complete mower model number appears in the fitment information above or in the official model-specific parts diagram.
- Confirm you are replacing the belt that routes around the spindle pulleys on the mower deck.
- Do not confuse this belt with the shorter or longer PTO belt running from the electric clutch to the mower deck.
- Do not substitute a transmission belt solely because it has similar dimensions.
- Compare the belt routing and dimensions with the original belt before installation.
Frequently Asked Questions
Is 02000653 only used on 54-inch mower decks?
No. Although the current Cub Cadet product title describes 02000653 as a 54-inch deck belt, model-specific parts diagrams also show it as the spindle-drive belt on select 48-inch and 50-inch Cub Cadet mower decks. Always use the complete mower model number and official parts diagram to confirm fitment.
Does 02000653 fit the Cub Cadet Z-Force 50?
Yes. Select legacy Cub Cadet Z-Force 50 model families use 02000653 as the spindle-drive deck belt, including the model-number paths listed above.
Is 02000653 the PTO belt?
No. On supported Z-Force applications, 02000653 is the belt that drives the spindle pulleys on the mower deck. A separate PTO belt transfers power from the electric PTO clutch to the deck.
Does 02000653 replace 954-05027B?
No. The belts may share similar nominal dimensions, but 954-05027B is a hydrostatic transmission belt. It should not be listed as an OEM replacement for the 02000653 deck spindle belt.
Related Cub Cadet Z-Force 50 Parts

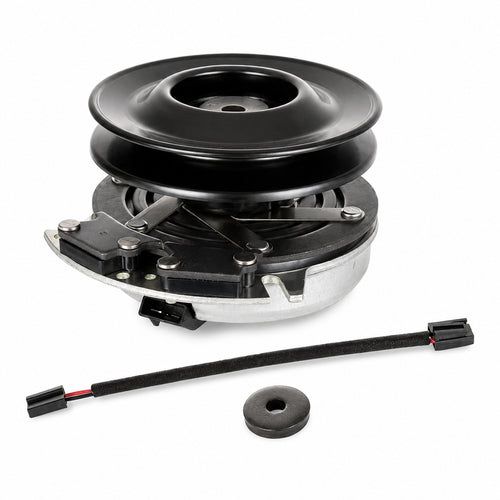

- 759-05064 PTO Clutch Replacement
- 01010168-0637 Mower Blades
- 918-04426 Spindle Assembly
- Cub Cadet Z-Force 50 Parts Quick Reference
Need help confirming fitment? Contact PTO Direct USA with your complete mower model number, deck size, and original belt number before ordering.
