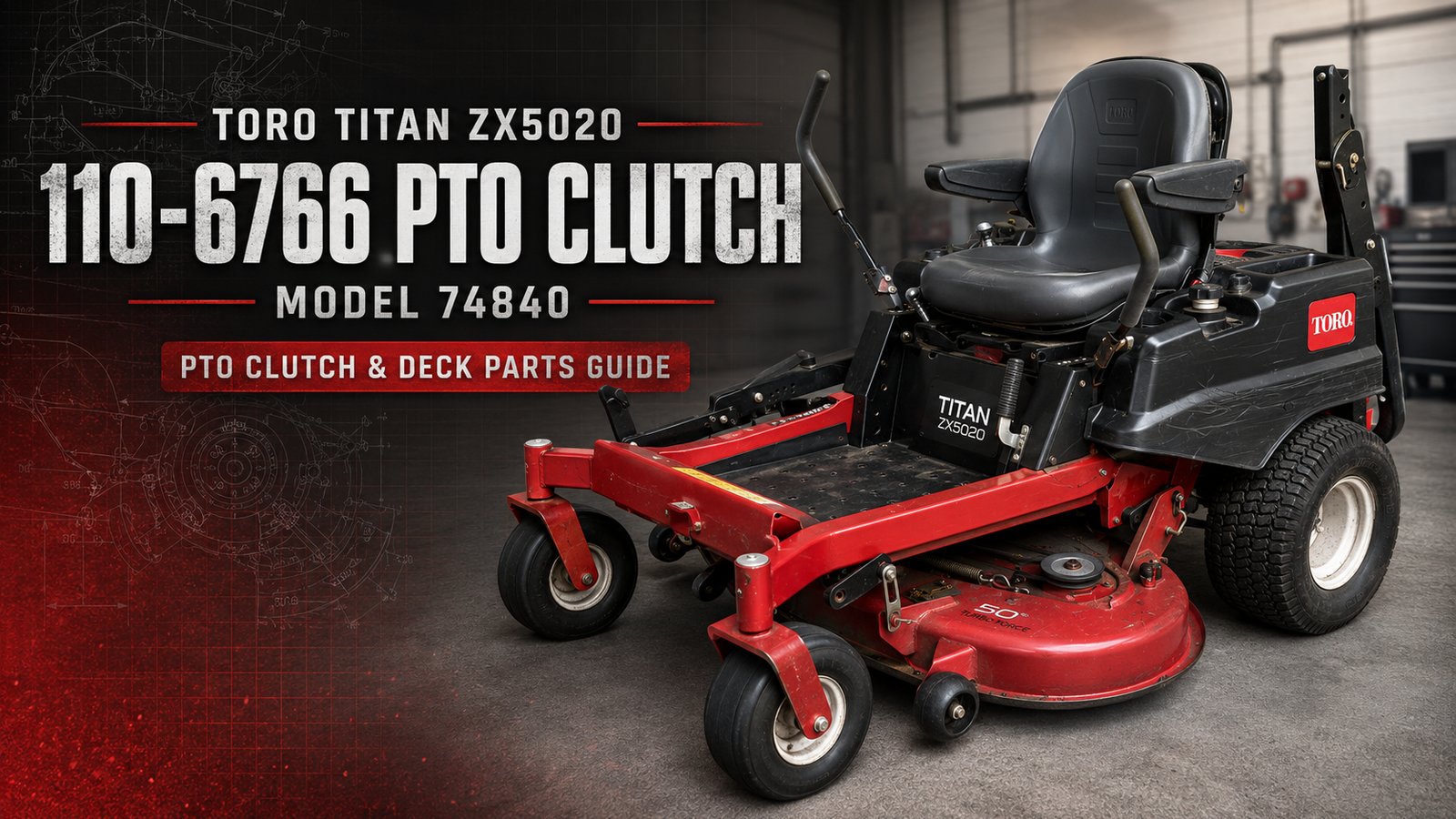

The Toro Titan ZX5020 is a 50-inch zero-turn mower that uses an electric PTO clutch to transfer power from the engine crankshaft to the mower deck belt system. If the blades will not engage, click but do not spin, slow down in heavy grass, or work cold and then fail hot, confirm the clutch path and deck components before replacing parts.
This guide covers the verified Toro Titan ZX5020 model 74840, the 110-6766 PTO clutch, related deck and drive parts, common wrong-order traps, and blade-engagement diagnostics.
Toro Titan ZX5020 PTO Clutch Fitment
The verified PTO clutch path for the Toro Titan ZX5020 model 74840 is 110-6766. This clutch mounts to the engine crankshaft and drives the deck belt when the PTO switch sends power to the electric clutch coil.
There is no verified PTO clutch serial split for the 74840 serial family covered here. For this model path, use 110-6766 and confirm the physical specifications before ordering.
| Fitment Check | Verified ZX5020 Specification |
|---|---|
| Mower model | Toro Titan ZX5020 |
| Toro model number | 74840 |
| Serial range | 311000001–311999999 |
| Deck size | 50 inch |
| Original PTO clutch | 110-6766 |
| Warner reference | Warner 5219-81 |
| Secondary Warner reference | Warner 5219-57 |
| Aftermarket cross references | Stens 255-823, Xtreme X0379, Rotary 16133 |
| Bore size | 1 inch |
| Pulley diameter | 5.8 inch, commonly listed as 5-13/16 inch |
| Rotation | CCW, counter-clockwise |
| Voltage | 12 VDC |
| Torque rating | 125 ft-lbs |
| Connector | Integral wire connector |
| PTO stop bracket | 117-1269-03 |
For expanded compatibility, cross references, and fitment checks, see the 110-6766 PTO clutch fitment guide.
Recommended PTO Clutch Replacement
The correct PTO Direct USA replacement path for this mower is the 110-6766 PTO clutch. Match your original clutch number, 1-inch bore, 5.8-inch pulley, CCW rotation, connector style, and PTO stop-bracket setup before ordering.
This is an aftermarket replacement clutch for Toro 110-6766 applications. It is built for proper blade engagement when matched to the correct mower model, crankshaft size, pulley size, belt path, connector, and anti-rotation setup.
Deck and Drive System Parts for Toro Titan ZX5020
The PTO clutch does not work alone. A worn belt, seized idler, dragging spindle, or damaged pulley can create the same symptoms as a failing clutch. Inspect the deck and drive system before replacing the PTO clutch.
| Component | Part Number | Fitment Notes |
|---|---|---|
| Deck belt | 115-2649 | Primary 50-inch deck belt for the ZX5020 74840 deck path. Inspect for glazing, cracking, fraying, or stretched sidewalls. |
| Traction / drive belt | 115-9613 | Hydrostatic traction drive belt. Check this if the mower moves poorly, steers unevenly, or loses drive power. |
| Blade | 117-1156-03 | High-flow 17.50 inch blade. The 50-inch deck uses three blades. |
| Complete spindle assembly | 117-7439 | The deck uses three spindle assemblies. Replace or inspect if bearings grind, wobble, seize, or create belt drag. |
| Spindle shaft | 117-7268 | Official shaft-spindle path inside the 117-7439 assembly. |
| Flat idler pulley | 106-2175 / commonly listed current replacement 132-9420 | Official 74840 diagrams show 106-2175. Some current listings use 132-9420 as the replacement path. Confirm against your mower model, serial number, and existing pulley before ordering. |
| Spindle pulley | 110-6865 / commonly listed current replacement 125-5575 | Official 74840 diagrams show 110-6865. Some current listings use 125-5575 as the replacement path. Confirm against your mower model, serial number, and existing pulley before ordering. |
| Idler arm | 114-8540 | Maintains deck belt tension with the spring and flat idler pulley. |
| PTO stop bracket | 117-1269-03 | Prevents the clutch body from rotating when the PTO engages. Confirm this bracket is present and not bent. |
| Hydraulic oil filter | 109-3321 | Related hydro-drive service part. Not part of the PTO clutch path, but useful during drive-system inspection. |
Blades Won’t Engage? Start With the Symptom
| Symptom | What It Usually Means | What to Check First |
|---|---|---|
| No PTO click | The clutch may not be receiving power, or the clutch coil may have failed. | Check battery voltage, PTO switch, fuse, seat switch, wiring connector, and the 110-6766 clutch lead. Start with the PTO clutch won’t engage guide. |
| PTO clicks, but blades do not spin | The clutch is pulling in, but power is not reaching the blades. | Check the 115-2649 deck belt, 106-2175 / 132-9420 flat idlers, 110-6865 / 125-5575 spindle pulleys, and all three 117-7439 spindle assemblies. See the PTO clicks but blades won’t spin guide. |
| Blades work cold, then slow down hot | The PTO clutch coil may be weakening when hot, or the belt and spindle system may be dragging under load. | Inspect the 110-6766 clutch, check for belt glazing, and spin each 117-7439 spindle by hand with the mower off. An old or worn PTO clutch coil can work cold, then weaken after the mower heats up. This can cause weak blade engagement, intermittent operation, slipping under load, or blades slowing down after 10 to 30 minutes. Read the PTO clutch slipping under load guide. |
| Burning smell or squeal | The deck belt may be slipping, a pulley may be seized, or the clutch may be overheating. | Check the 115-2649 deck belt, 106-2175 / 132-9420 idlers, 110-6865 / 125-5575 spindle pulleys, and spindle bearings before replacing the clutch. |
How to Confirm Fitment Before Ordering
- Find the mower model tag. Confirm the mower is Toro model 74840, not a TimeCutter Z5020 or a different Titan model.
- Confirm the serial number. This guide covers the verified 74840 serial family 311000001–311999999.
- Read the original clutch number. Look for 110-6766 or Warner 5219-81 on the old clutch body, label, or stamped housing.
- Measure the bore. The ZX5020 clutch path uses a 1-inch bore.
- Measure the pulley. The correct clutch uses a 5.8 inch pulley, often listed as 5-13/16 inch.
- Confirm rotation. The 110-6766 path uses CCW rotation.
- Compare the connector. Match the integral wire connector and harness routing to the original clutch.
- Inspect the anti-rotation setup. Make sure the PTO stop bracket is in place and the clutch body cannot rotate when engaged.
Need help checking crankshaft size? Use the PTO clutch bore size guide. Need help with rotation? Use the PTO clutch rotation guide.
Installation Notes for the Toro Titan ZX5020
Park the mower on a level surface, disengage the PTO, remove the key, set the parking brake, disconnect the battery, and lower the deck before removing the old clutch. Release deck belt tension and slip the 115-2649 belt off the clutch pulley before removing the clutch retaining bolt.
When the old clutch is removed, inspect the crankshaft, keyway, belt path, and PTO stop bracket. Clean rust, burrs, old anti-seize, and debris from the crankshaft before sliding the new clutch into place. The new clutch should slide on squarely without being forced.
If the old clutch will not slide off, or if rust, burrs, keyway binding, seized hardware, hammering risk, or prying risk is involved, stop and use the PTO clutch stuck on crankshaft guide. Do not beat on the clutch or pry against the engine case.
After installation, route the clutch wire away from the belt, pulley, exhaust, and moving deck parts. Reinstall the deck belt, verify pulley alignment, reconnect the battery, and burnish the new clutch according to the PTO clutch installation guide.
Common Wrong-Order Traps
Trap 1: Ordering by “Z5020” instead of “ZX5020”
The Toro TimeCutter Z5020 and Toro Titan ZX5020 are different mower platforms. Even when some clutch numbers overlap, the deck, belt, spindle, pulley, and chassis parts can be different. Use Toro model 74840 for this guide.
Trap 2: Buying a 1-1/8 inch commercial clutch
Some Toro Z-Master and commercial clutch paths use a larger 1-1/8 inch bore. The Titan ZX5020 110-6766 clutch path uses a 1-inch bore. A loose-bore clutch can damage the crankshaft and keyway.
Trap 3: Mixing 110-6766 with unrelated 1-inch clutches
Do not assume every 1-inch bore Toro clutch fits. The clutch must also match pulley diameter, rotation, connector, height, pulley offset, and anti-rotation setup.
FAQ
What PTO clutch fits a Toro Titan ZX5020?
The verified PTO clutch for the Toro Titan ZX5020 model 74840 is 110-6766. Common cross references include Warner 5219-81, Warner 5219-57, Stens 255-823, Xtreme X0379, and Rotary 16133.
What Toro model number is the Titan ZX5020?
The Toro Titan ZX5020 covered here is model 74840. Confirm this number on the mower model tag before ordering clutch, belt, blade, spindle, or pulley parts.
Does the Toro Titan ZX5020 have a PTO clutch serial split?
No verified PTO clutch serial split is used for the 74840 serial family covered in this guide. The correct PTO clutch path is 110-6766.
Does the ZX5020 use the same PTO clutch as the ZX5000?
Yes, the Titan ZX5020 model 74840 and Titan ZX5000 model 74820 share the 110-6766 clutch path. Still confirm your exact model number, serial number, and deck parts before ordering other components.
What deck belt fits the Toro Titan ZX5020?
The verified deck belt for the Toro Titan ZX5020 50-inch deck path is 115-2649.
What drive belt fits the Toro Titan ZX5020?
The verified traction drive belt for the Toro Titan ZX5020 model 74840 is 115-9613.
What spindle assembly fits the Toro Titan ZX5020?
The complete spindle assembly for the 50-inch ZX5020 deck path is 117-7439. The mower uses three spindle assemblies.
What blade fits the Toro Titan ZX5020?
The verified high-flow blade listed for the 74840 50-inch deck path is 117-1156-03. The deck uses three blades.
Why does my ZX5020 PTO clutch click but the blades do not spin?
A click usually means the clutch coil is receiving power and pulling in. If the blades do not spin, inspect the 115-2649 deck belt, idler pulleys, spindle pulleys, and 117-7439 spindle assemblies for slipping, binding, or seizure.
Why does my ZX5020 PTO work cold, then fail hot?
A worn clutch coil can work cold and then weaken after heat builds up. This can cause intermittent engagement, slipping under load, or blades slowing down after 10 to 30 minutes. Inspect the clutch, belt, pulleys, and spindle bearings before replacing parts.
Can PTO Direct USA help confirm my Toro Titan ZX5020 clutch?
Yes. Send your mower model number, serial number, original clutch number, deck size, and clear photos of the old clutch, connector, pulley, anti-rotation bracket, and crankshaft area. Fitment should be verified before ordering.
