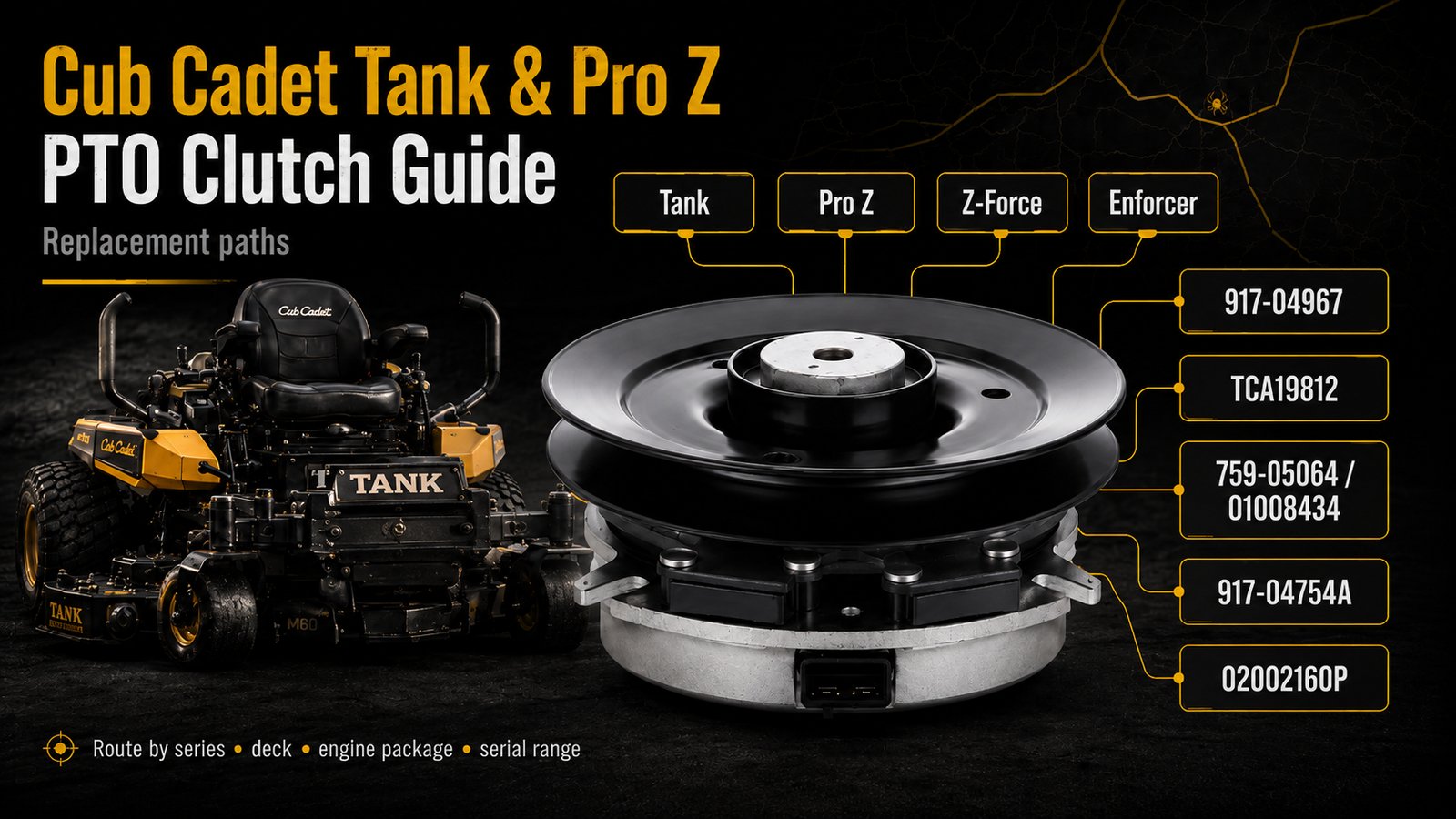

Cub Cadet Tank & Pro Z PTO Clutch Guide: Commercial Replacement Paths

Cub Cadet commercial PTO clutch fitment can get confusing because Tank, Pro Z, Z-Force, and Enforcer models do not all route to the same clutch. Deck size, model year, engine package, commercial series, and serial range can all affect the correct replacement path.

This guide helps narrow down the correct aftermarket replacement PTO clutch for select Cub Cadet commercial zero-turn and stand-on mower applications. Start with the mower series and deck family, then use the OEM number, Warner number, Ogura number, and aftermarket cross-reference as confirmation points before ordering.

Find Your Cub Cadet Commercial PTO Clutch

Table tip: On mobile, swipe sideways to view the full fitment table.

Important fitment note: This index is a routing guide, not a universal interchange list. Cub Cadet commercial PTO clutch fitment can change by model year, serial number, deck size, engine package, and machine configuration. If the original clutch part number is missing or unreadable, use the mower model number, serial number, deck size, and engine package as a starting point, then compare the lead product page specs before ordering.

Common Cub Cadet Tank, Pro Z, Z-Force and Enforcer Ordering Mistakes

• Assuming all commercial Cub Cadet clutches interchange: Tank, Pro Z, Z-Force, and Enforcer applications can use different clutch paths even when the mowers look similar from the outside.
• Mixing 1" and 1-1/8" bore paths: some Cub Cadet commercial paths use a 1" crankshaft bore, while others use 1-1/8". Bore size is a hard fitment requirement.
• Confusing 759-05064 and 01008434 with heavier Pro Z paths: 759-05064 / 01008434 is a common Cub Cadet / MTD path, but it should not be treated as the same family as 917-04967 or TCA19812.
• Assuming Z-Force and Z-Force S use the same clutch: Z-Force S steering-wheel zero-turn models commonly route through a separate 917-04754A path on select applications.
• Replacing the clutch without checking the deck drive: belt slip, dragging spindles, seized idlers, weak voltage, poor ground, or connector damage can all look like PTO clutch failure.

917-04967 PTO Clutch Path for Cub Cadet Tank LZ, Tank SZ and Pro Z

The 917-04967 PTO clutch replacement is a heavy commercial Cub Cadet / MTD path for select Tank LZ, Tank SZ, and Pro Z applications. It is one of the main replacement paths to check when working on larger commercial Cub Cadet zero-turn mowers.

• Replacement for OEM part numbers: 917-04967, 717-04967
• Warner cross-reference: 5218-288
• Aftermarket cross-references: Xtreme X0400, Xtreme X0275, Stens 255-622X
• Common model routing: select Tank LZ 48, Tank LZ 54, Tank LZ 60, Tank SZ 48, Tank SZ 54, Tank SZ 60, Pro Z 760-L, Pro Z 760-S, Pro Z 960-L, and Pro Z 960-S applications
• Fitment note: this path is commonly associated with a 1-1/8" bore and larger commercial deck-drive setup. Confirm the mower configuration and product page details before ordering.

TCA19812 PTO Clutch Path for Pro Z, Pro X and Tank Applications

The TCA19812 PTO clutch replacement is a commercial multi-fit path used across select Cub Cadet Pro Z, Pro X, Tank, and other commercial mower platforms. This path also appears in some John Deere ZTrak cross-reference searches, so use the Cub Cadet model and part-number trail carefully.

• Replacement for OEM part numbers: TCA19812, TCA21168, TCA20655, TCA16997, 917-05184, 717-05184
• Warner cross-references: 5219-84, 5219-141, 5219-44
• Aftermarket cross-references: Xtreme X0340, X0340-K, X0360, X0360-K, 8TEN 810-CPT2382O, Stens 255-151
• Common Cub Cadet routing: select Pro Z 548-L, 554-L, 554-L EFI, 554-S, 560-L, 560-S, 760-L EFI, Pro X 648, 654, 654 EFI, 660, 660 EFI, Tank L48, Tank L54, Tank L60, and Tank S60 applications
• Fitment note: this is a commercial 1-1/8" bore path on supported applications. Confirm the part-number path and product page details before ordering.

759-05064 / 01008434 PTO Clutch Path for Z-Force, Enforcer and Tank M50

The 759-05064 PTO clutch replacement is the lead Cub Cadet path for many searches involving 01008434, 01008434P, and 539124833. This family is commonly associated with select Z-Force, Z-Force Pro, Enforcer, Tank M50, and HFF1748 applications.

• Replacement for OEM part numbers: 759-05064, 75905064, 01008434, 01008434P, 539124833, 124833, 3579
• Aftermarket cross-references: Xtreme X0707, Stens 255-371X, Stens X0707-K, 8TEN 810-CPT2303O
• Common Cub Cadet routing: select Z-Force 15, 18, 44, 48, 50, and 54 models; Z-Force Pro 48 and 54; Enforcer 44, 48, and 54; Tank M50; and HFF1748
• Fitment note: this is a 1" bore path on supported applications. Keep it separate from the 1-1/8" commercial paths such as 917-04967, TCA19812, and 02002160P.

917-04754A PTO Clutch Path for Cub Cadet Z-Force S

The 917-04754A PTO clutch replacement is the lead path for select Cub Cadet Z-Force S steering-wheel zero-turn applications. This is an important separate path because Z-Force S should not be treated as automatically interchangeable with standard Z-Force or Tank clutch families.

• Replacement for OEM part numbers: 917-04754A, 717-04754A, 917-04754, 717-04754
• Warner / Ogura cross-references: Warner 5219-119, Ogura 01009590, Ogura 01009590P
• Aftermarket cross-references: Xtreme X0505, Oregon 274-2407, 8TEN 810-CPT2318O
• Common model routing: select Z-Force S 46, Z-Force S 54, Z-Force S 54 KH, Z-Force S 60, Z-Force S 60 KH, and Z-Force S 60 LP applications
• Fitment note: this path is commonly associated with a 1" bore and 6" pulley on supported applications. Confirm the mower model, year range, and part-number path before ordering.

02002160P PTO Clutch Path for Select Enforcer and Z-Force Applications

The 02002160P PTO clutch replacement routes to select Cub Cadet Enforcer and Z-Force applications using the 02002160 / 02002160P / 2002160 path. This family is useful to separate from the 759-05064 / 01008434 path because both can appear around Enforcer and Z-Force searches.

• Replacement for OEM part numbers: 02002160P, 02002160, 2002160
• Ogura cross-references: MA-GT-KB05P, MAGTKB05P, GT1-CT04
• Aftermarket cross-references: Stens 255-370X, Stens 255-795X
• Common model routing: select Cub Cadet Enforcer 48, Enforcer 54, and Z-Force 60 applications
• Fitment note: this is a 1-1/8" bore path on supported applications. Do not assume it replaces 759-05064 / 01008434 without confirming the clutch path.

Commercial PTO Clutch Symptoms to Check Before Replacing Parts

Commercial Cub Cadet mowers put heavy load on the PTO clutch, deck belt, idlers, and spindle bearings. A worn clutch can fail, but the surrounding deck drive should be checked before replacing parts.

• Blades engage, then slow down or stop in thick grass
• PTO clutch works cold but fails after 10 to 30 minutes
• Burning smell or excessive heat near the clutch
• Clutch clicks, but the deck belt or blades do not move
• Intermittent engagement on rough ground or after the mower heats up
• Blown fuse, melted connector, weak ground, or damaged PTO wiring

If the mower blades slow down under load or the clutch works cold but fails hot, use the PTO clutch slipping under load guide. If you smell heat or burning near the clutch area, review the PTO clutch hot or burning smell guide. If the issue points toward a fuse, PTO switch, connector, relay, or ground problem, start with the PTO clutch wiring, fuse and switch testing guide.

An old or worn PTO clutch coil can work when cold, then weaken after the mower heats up. This can cause weak engagement, intermittent operation, slipping under load, or blades slowing down after 10 to 30 minutes.

Before Installing a Cub Cadet Commercial PTO Clutch

Before installing the replacement PTO clutch, compare the new clutch to the old clutch and inspect the mower for conditions that could damage the replacement.

• Confirm mower model, serial number, deck size, and engine package
• Confirm the OEM, Warner, Ogura, or aftermarket number when available
• Compare crankshaft bore: common paths here include 1" and 1-1/8"
• Compare pulley family, belt width, rotation, connector, and anti-rotation setup
• Inspect the deck belt for glazing, cracking, stretching, oil contamination, or wrong routing
• Spin idlers and spindle pulleys by hand to check for drag or bearing noise
• Inspect the PTO wiring connector for heat damage, loose terminals, corrosion, or poor ground

Review the PTO clutch installation guide before mounting the replacement. If the old clutch is rusted, seized, stuck on the crankshaft, or will not slide off by hand, do not hammer or pry against the engine. Use the PTO clutch stuck on crankshaft guide before forcing removal.

Need Help Confirming Fitment?

If you are not sure which Cub Cadet commercial PTO clutch you need, email support@ptodirectusa.com with your mower model number, serial number, deck size, engine package, and clear photos of the old clutch. For best fitment help, include photos of the clutch label or stamped number, wiring connector, pulley, anti-rotation setup, crankshaft area, and mower identification tag.

PTO Direct USA supplies aftermarket replacement PTO clutches for select Cub Cadet, MTD-built, and commercial mower applications. These products are replacement parts for matching OEM part numbers. Confirm fitment before ordering.

FAQ

What PTO clutch fits a Cub Cadet Tank LZ?

Select Cub Cadet Tank LZ applications may route to the 917-04967 path or the TCA19812 path depending on deck size, model year, engine package, and original clutch family. Use the routing table above as a starting point, then confirm the product page details before ordering.

What PTO clutch fits a Cub Cadet Tank SZ?

Select Tank SZ applications commonly appear in the 917-04967 commercial clutch path, but fitment can vary by deck size and production configuration. Confirm the mower model, serial number, deck size, and clutch path before ordering.

What PTO clutch fits a Cub Cadet Pro Z?

Cub Cadet Pro Z models can route through more than one clutch family. Select Pro Z 760 and Pro Z 960 applications may route to 917-04967, while other Pro Z applications may route to TCA19812 or another commercial path. Use model, deck, serial, engine package, and part-number information together.

Are 759-05064 and 01008434 the same PTO clutch path?

759-05064 and 01008434 are commonly associated with the same Cub Cadet / MTD replacement path on supported applications. This family also includes 01008434P and related cross-reference numbers. Confirm the lead product page details before ordering.

Is 917-04754A the same as 917-05209?

No. 917-04754A and 917-05209 are separate Cub Cadet / MTD clutch paths. 917-04754A is commonly tied to select Z-Force S steering-wheel zero-turn applications, while 917-05209 is commonly tied to select RZT-L, RZT-S, ZT1, and ZT2 applications.

What is the difference between a 1" bore and 1-1/8" bore PTO clutch?

The bore size must match the engine crankshaft. A 1" bore clutch will not fit a 1-1/8" shaft, and a 1-1/8" bore clutch should not be installed on a 1" shaft. Confirm the clutch family and product page details before ordering.

Can a bad deck belt make a PTO clutch look weak?

Yes. A loose, glazed, stretched, oil-soaked, or misrouted deck belt can slip under load and make the PTO clutch look like it is failing. Dragging idlers or spindle bearings can also overload the clutch.

Why does my Cub Cadet PTO clutch work cold but quit hot?

A worn coil, low voltage, slipping belt, hot connector, weak ground, or dragging deck component can cause the clutch to engage cold and then weaken after 10 to 30 minutes of mowing. Check the electrical system and deck drive before replacing parts.

Can PTO Direct USA help identify my Cub Cadet commercial PTO clutch?

Yes. Email support@ptodirectusa.com with your mower model number, serial number, deck size, engine package, and clear photos of the old clutch, connector, pulley, anti-rotation setup, crankshaft area, and mower ID tag.
