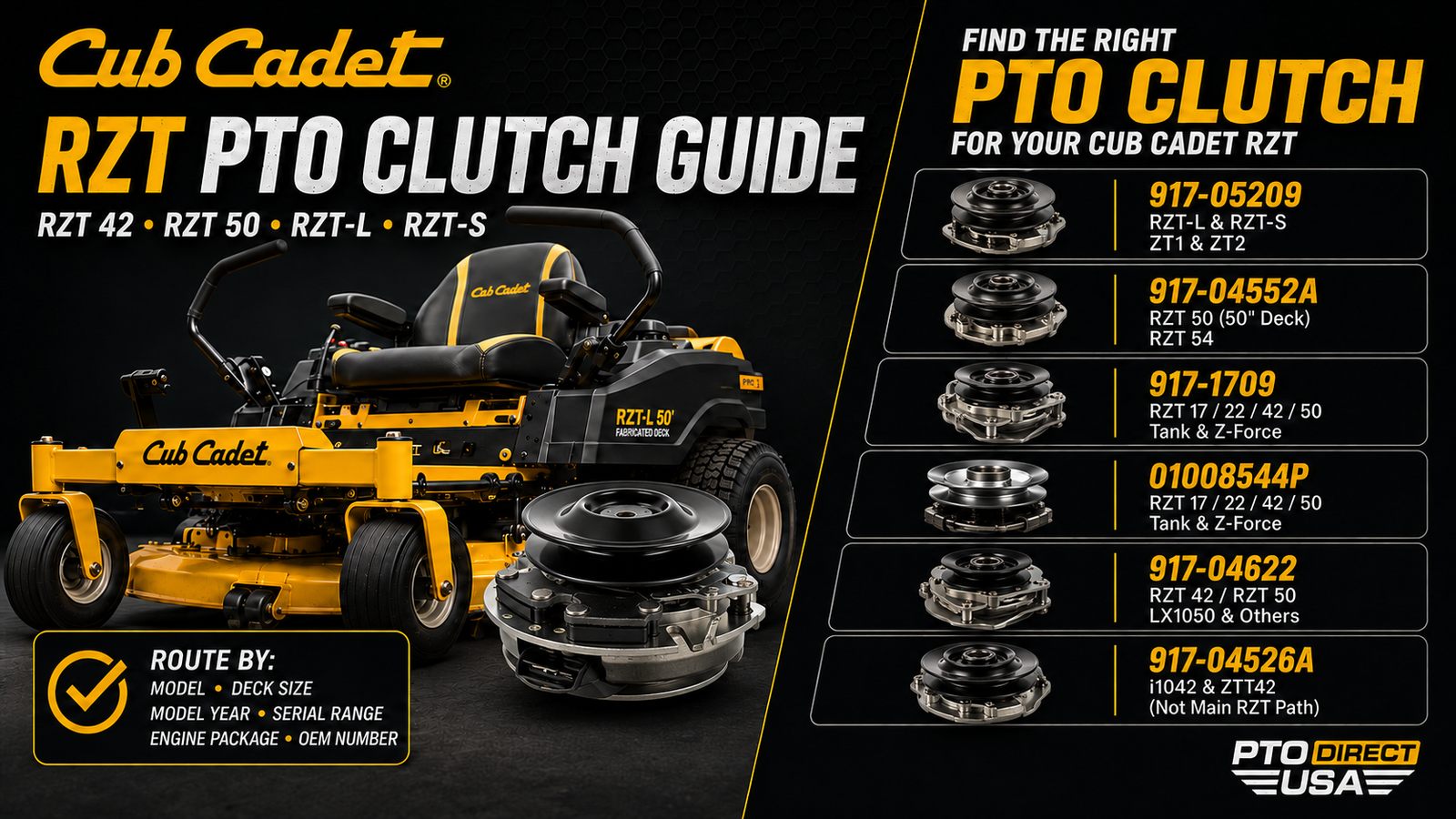

Cub Cadet RZT PTO Clutch Guide: RZT 42, RZT 50, RZT-L & RZT-S Replacement Paths

Cub Cadet RZT PTO clutch fitment can get confusing because RZT 42, RZT 50, RZT-L, and RZT-S models do not all route to the same clutch. Deck size, model year, engine package, and serial range can all affect the correct replacement path.

This guide helps narrow down the correct aftermarket replacement PTO clutch for select Cub Cadet RZT zero-turn mowers by routing common RZT model families to the lead replacement path first, then using OEM, Warner, and aftermarket cross-reference numbers as confirmation points before ordering.

Find Your Cub Cadet RZT PTO Clutch

Table tip: On mobile, swipe sideways to view the full fitment table.

ZT1 / ZT2 note: If your mower is a Cub Cadet ZT1 or ZT2 instead of an RZT, use the Cub Cadet ZT1 & ZT2 PTO Clutch Guide. Many supported ZT1 and ZT2 applications route through the 917-05209 path, but they should be treated as their own modern zero-turn series instead of being lumped into RZT fitment.

Important fitment note: This index is a routing guide, not a universal interchange list. PTO clutch fitment can change by model year, serial number, deck size, and machine configuration. If the original clutch part number is missing or unreadable, use the mower model number, serial number, and deck size as a starting point, then compare the lead product page specs such as crankshaft bore, pulley diameter, rotation, and connector plug.

Common Cub Cadet RZT PTO Clutch Ordering Mistakes

• Assuming every RZT 50 uses the same clutch: RZT 50 can route to different PTO clutch paths depending on year, deck setup, OEM number, and physical specs.
• Mixing 6" pulley and 5.31" pulley clutch paths: 917-05209 and 917-04552A use a 6" pulley path, while 917-1709 and 01008544P use a 5.31" pulley path. Pulley mismatch can affect belt alignment and blade speed.
• Confusing RZT 42 with i1042 or ZTT42: some shoppers land on the 917-04526A path while searching RZT 42. That clutch is tied to select i1042 and ZTT42 applications, so compare the OEM number and specs before ordering.
• Shopping only by appearance: several Cub Cadet / MTD PTO clutches look similar but use different pulley diameters, connectors, anti-rotation setups, or OEM number paths.
• Replacing the clutch before checking the deck drive: a bad belt, seized spindle, weak battery, bad ground, or failing PTO switch can mimic a clutch problem.

917-05209 PTO Clutch Path for RZT-L and RZT-S Models

The 917-05209 PTO clutch replacement is a common route for select Cub Cadet RZT-L and RZT-S zero-turn applications, including RZT-L46, RZT-L50, RZT-L54, RZT-S46, RZT-S50, and RZT-S54 when the original clutch and physical specs match.

• Replacement for OEM part numbers: 917-05209, 717-05209
• Warner cross-reference: 5219-177
• Aftermarket cross-references: Xtreme X0726, Xtreme X0736, Rotary 16173, Sunbelt B1XT0726, Stens 255-668X
• Key specs: 1" crankshaft bore, 6" pulley diameter, CCW rotation from pulley side
• Best use case: select later RZT-L, RZT-S, ZT1, and ZT2 applications using the 917-05209 / 717-05209 / Warner 5219-177 clutch path

917-04552A PTO Clutch Path for Select RZT 50 and RZT 54 Models

The 917-04552A PTO clutch replacement is commonly associated with select Cub Cadet RZT 50 50-inch deck applications from 2008-2012 and select RZT 54 applications from 2009-2012 using the 917-04552A / Warner 5219-98 path.

• Replacement for OEM part numbers: 917-04552A, 717-04552A, 917-04552, 717-04552
• Warner cross-reference: 5219-98
• Aftermarket cross-references: Xtreme X0390, Stens 255-839X, Rotary 14229, Sunbelt B1XT0390
• Key specs: 1" crankshaft bore, 6" pulley diameter, CCW rotation, integral connector
• Best use case: select RZT 50 and RZT 54 applications where the original clutch routes to 917-04552A, 717-04552A, or Warner 5219-98

917-1709 PTO Clutch Path for RZT 42, RZT 50, Tank and Z-Force Crossover Models

The 917-1709 PTO clutch replacement routes to select Cub Cadet RZT-17, RZT-22, RZT-42, and RZT-50 applications, along with certain Tank and Z-Force crossover applications using the 917-1709 / 717-1709 clutch path.

• Replacement for OEM part numbers: 917-1709, 717-1709, 1706692SM
• Warner cross-references: 5215-130, 5215-22
• Aftermarket cross-references: Oregon 33-126-1, Oregon 33-139, Stens X0423
• Key specs: 1" crankshaft bore, 5.31" pulley diameter, CCW rotation
• Best use case: select older RZT 42 and RZT 50 platforms where the original clutch routes to 917-1709 or 717-1709

01008544P PTO Clutch Path for RZT and Z-Force Crossover Models

The 01008544P PTO clutch replacement is another common Cub Cadet / MTD route for select RZT17, RZT22, RZT42, RZT50, Tank M48-HN, and Z-Force Series applications.

• Replacement for OEM part numbers: 01008544P, 01008544, 917-04127, 717-04127, 01009268P, 01009268
• Aftermarket cross-reference: Stens 255-910X
• Key specs: 1" crankshaft bore, 5.31" pulley diameter, CCW rotation
• Best use case: select RZT and Z-Force applications that identify by 01008544P, 917-04127, or 717-04127 instead of the 917-1709 path

917-04622 PTO Clutch Path for Select RZT42 and RZT50 Models

The 917-04622 PTO clutch replacement routes to select Cub Cadet RZT42, RZT50, LX1050, and related MTD-built zero-turn mower applications using the 917-04622 / 717-04622 / Warner 5219-99 path.

• Replacement for OEM part numbers: 917-04622, 717-04622, 917-04183, 717-04183
• Warner cross-reference: 5219-99
• Key specs: 1" crankshaft bore, 5.43" pulley diameter, CCW rotation
• Best use case: select RZT42, RZT50, and MTD-built zero-turn applications where the original clutch or parts lookup routes to 917-04622, 717-04622, or 917-04183

917-04526A Crossover Note: i1042 and ZTT42 Are Not the Same as RZT

The 917-04526A PTO clutch replacement is included here because it often appears in 42-inch Cub Cadet zero-turn-style searches, but it is not the main RZT 42 path. This clutch is commonly tied to select Cub Cadet i1042 and ZTT42 applications from 2010 and older using the Warner 5219-94 path.

• Replacement for OEM part numbers: 917-04526A, 717-04526A, 917-04526, 717-04526
• Warner cross-reference: 5219-94
• Aftermarket cross-reference: Xtreme X0387
• Key specs: 1" crankshaft bore, 6" pulley diameter, CCW rotation
• Fitment note: use this path for compatible i1042 and ZTT42 applications, not as a blanket substitute for RZT 42.

Common Cub Cadet RZT PTO Clutch Symptoms

A failing Cub Cadet RZT PTO clutch can look like a belt problem, wiring issue, weak battery, bad ground, or deck-drive failure. Check the full blade engagement system before replacing parts.

• Mower blades will not engage when the PTO switch is pulled
• PTO clutch clicks but the blades do not spin
• Deck belt does not move when the clutch engages
• Blades engage, then slow down in thick grass
• PTO works cold but fails after 10 to 30 minutes of mowing
• Burning smell or excess heat near the clutch area
• Connector damage, melted plug, blown fuse, or intermittent engagement

If the blades will not engage at all, start with the PTO clutch won’t engage troubleshooting guide. If the clutch clicks but the deck does not spin, use the PTO clutch clicks but blades won’t spin guide. If the blades slow down in heavy grass or the clutch works cold but fails hot, review the PTO clutch slipping under load guide.

An old or worn PTO clutch coil can work when cold, then weaken after the mower heats up. This can cause weak engagement, intermittent operation, slipping under load, or blades slowing down after 10 to 30 minutes.

Before Installing a Cub Cadet RZT PTO Clutch

Before installing the replacement PTO clutch, compare the new clutch to the original and inspect the mower for problems that could damage the replacement.

• Confirm the OEM, Warner, or aftermarket number when available
• Confirm the mower model, serial number, and deck size
• Compare crankshaft bore: most RZT paths listed here use 1"
• Compare pulley diameter: common paths include 6", 5.43", and 5.31"
• Confirm CCW rotation from the pulley side
• Compare connector plug, wire lead, and anti-rotation setup
• Inspect the deck belt for glazing, stretching, cracking, oil contamination, or wrong routing
• Check idlers and spindle bearings for drag before blaming the clutch
• Inspect the harness connector for corrosion, heat damage, loose terminals, or melted plastic

Review the PTO clutch installation guide before mounting the replacement. If the old clutch will not slide off the crankshaft, do not hammer, pry aggressively, or pull from one side. Rust, burrs, keyway binding, and seized hardware can lock the clutch in place. Use the PTO clutch stuck on crankshaft guide before forcing removal.

Need Help Confirming Fitment?

If you are not sure which Cub Cadet RZT PTO clutch you need, email support@ptodirectusa.com with your mower model number, serial number, deck size, and clear photos of the old clutch. For best fitment help, include photos of the clutch label or stamped number, wiring connector, pulley, anti-rotation setup, crankshaft area, and mower identification tag.

PTO Direct USA supplies aftermarket replacement PTO clutches for select Cub Cadet and MTD-built applications. These products are replacement parts for matching OEM part numbers. Confirm fitment before ordering.

FAQ

What PTO clutch fits a Cub Cadet RZT 50?

Cub Cadet RZT 50 does not route to one universal PTO clutch. Depending on year, deck configuration, and original clutch path, select RZT 50 applications may route to 917-04552A, 917-1709, 01008544P, 917-04622, or another Cub Cadet / MTD clutch family. Use the routing table above as a starting point, then compare bore size, pulley diameter, rotation, connector, and OEM number.

What PTO clutch fits a Cub Cadet RZT 42?

Select RZT 42 applications may route to the 917-1709, 01008544P, or 917-04622 replacement paths, depending on the machine configuration. Do not assume RZT 42 and i1042 use the same clutch. If your machine is an i1042 or ZTT42, review the 917-04526A path separately.

Does 917-05209 fit Cub Cadet RZT-L and RZT-S models?

917-05209 is commonly associated with select Cub Cadet RZT-L and RZT-S applications including RZT-L46, RZT-L50, RZT-L54, RZT-S46, RZT-S50, and RZT-S54 when the original clutch and specs match. Confirm 1" bore, 6" pulley diameter, CCW rotation, connector style, and OEM number before ordering.

Is 917-04552A the same as 717-04552A?

Yes. 917-04552A and 717-04552A are part of the same Cub Cadet / MTD replacement path. This family also includes 917-04552, 717-04552, and Warner 5219-98 on compatible applications.

Is 917-1709 the same as 717-1709?

917-1709 and 717-1709 are related Cub Cadet / MTD part numbers in the same replacement path. This family also cross-references 1706692SM and Warner 5215-130 / 5215-22 on compatible applications.

What bore size do these Cub Cadet RZT PTO clutches use?

The common RZT clutch paths listed in this guide use a 1" crankshaft bore, but always confirm against the lead product page and your original clutch before ordering.

Why does pulley diameter matter on a Cub Cadet RZT PTO clutch?

Pulley diameter affects belt alignment, belt speed, blade engagement, and deck-drive performance. A 6" pulley clutch should not be treated as interchangeable with a 5.31" or 5.43" pulley clutch unless the OEM number and full specs support that path.

Can a Cub Cadet RZT PTO clutch click and still be bad?

Yes. A click usually means the clutch coil is trying to engage, but it does not prove the clutch can transfer torque to the deck belt. A worn clutch, weak coil, slipping belt, low voltage, bad ground, or deck-drive problem can still keep the blades from spinning.

Can PTO Direct USA help identify my RZT clutch?

Yes. Email support@ptodirectusa.com with your model number, serial number, deck size, original clutch number if available, and clear photos of the clutch, connector, pulley, anti-rotation setup, crankshaft area, and mower ID tag.
