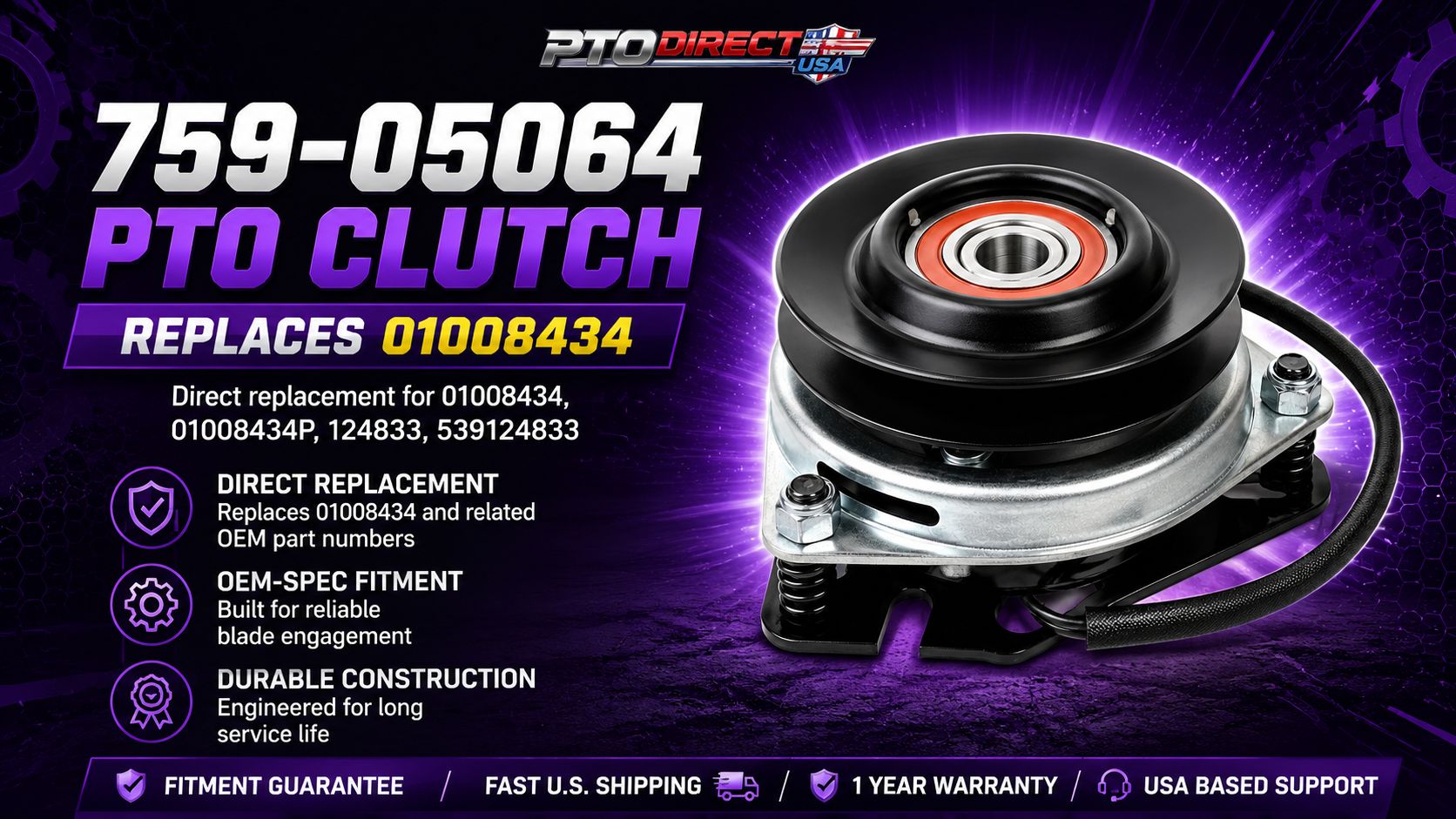

The 759-05064 electric PTO clutch replacement is the current PTO Direct USA replacement path for mower applications that cross-reference 01008434, 01008434P, 124833, and 539124833.
This clutch family is commonly used across select older MTD-built, Cub Cadet, Craftsman, Toro, Wheel Horse, Dixon, Husqvarna, Lawn-Boy, and related mower platforms. If your original clutch is stamped 01008434 or 01008434P, start with the 759-05064 PTO clutch replacement and confirm the physical specs before ordering.
If your mower blades will not engage, stop under load, or the clutch clicks without turning the deck belt, this 1-inch bore clutch family is one of the common replacement groups to check on compatible zero-turns, riding mowers, and selected rear-engine platforms.
Need help confirming the correct PTO clutch?
Email support@ptodirectusa.com with your mower model number, serial number, OEM clutch number, and clear photos of the old clutch, wiring connector, pulley, anti-rotation bracket, and deck belt routing.
759-05064 Replaces 01008434
The simplest way to think about this clutch family is:
- 01008434 = older or alternate clutch reference
- 01008434P = packaged service version in the same clutch family
- 759-05064 = current PTO Direct USA replacement product path
If your parts lookup, original clutch, old dealer paperwork, or service literature references 01008434, the current product page to check is the 759-05064 PTO clutch replacement.
Technical Specifications to Confirm
This replacement path is built around the following general clutch profile. Always compare these specs with your original clutch before installation.
- Current replacement path: 759-05064
- Replaces: 01008434, 01008434P, 1008434
- Crankshaft bore: 1 inch
- Pulley diameter: approximately 5.35 inches
- Rotation: CCW from pulley side
- Operating speed: up to 3600 RPM
- Design: electric PTO clutch with electromagnetic coil
- Common use: riding mowers, zero-turn mowers, selected commercial walk-behinds, and selected rear-engine platforms
OEM Part Number Cross-Reference
This guide focuses on the Cub Cadet / MTD / Craftsman / Toro-side replacement path for 759-05064. These numbers are commonly associated with this path when the physical specs and mower application match.
MTD / Cub Cadet / Craftsman Numbers
- 759-05064
- 01008434
- 01008434P
- 1008434
Toro / Wheel Horse / Lawn-Boy Numbers
- 124833
- 539124833
- 44-0770
- 54-0220
Additional Interchange Numbers
- 7029232
- 51110100
- 35016
- 33386
- B1XT0486
- 462715
- 462610
Important split-family note: Some older cross-reference lists also show Simplicity, Snapper, and Ferris numbers near this family. Those are now handled separately through the 1686880SM PTO clutch cross-reference guide. If your original clutch shows 1686880SM, 5023100, 5023100SM, 1717664, 1717664SM, 1720532, 1757359, 1757359YP, or Ogura MA-GT-JD11, check the 1686880SM PTO clutch replacement instead.
Related OEM Cross-Reference Guides
Compatible Mower Models by Brand
This clutch family is commonly found on compatible mower platforms with 44-inch to 54-inch decks, especially where a 1-inch bore clutch is paired with older MTD-built or Toro-side deck systems. The best confirmation method is still matching your original clutch number and physical specs.
Cub Cadet
- Z-Force 15
- Z-Force 18
- Z-Force 44
- Z-Force 48
- Z-Force 50
- Z-Force 54
- Z-Force Pro 48
- Z-Force Pro 48-KH
- Z-Force Pro 54
- Tank M50
- Enforcer 44
- Enforcer 48
- Enforcer 54
- HFF1748
Cub Cadet fitment note: The 759-05064 / 01008434 clutch family appears across several older Cub Cadet and MTD-built mower platforms, including Z-Force, Z-Force Pro, Tank, Enforcer, and related zero-turn models. Because these machines can vary by deck size, engine setup, production year, and previous service history, always confirm the OEM number on the original clutch before ordering.
For broader Cub Cadet fitment help, see the Cub Cadet PTO clutch replacement guide. For Z-Force, Z-Force Pro, Tank, and related deck reference notes, see the Cub Cadet Z-Force Series PTO clutch, belt, blade, and spindle reference.
Replacing a PTO clutch on an Enforcer 44, 48, or 54? Use the Cub Cadet Enforcer PTO clutch replacement guide for model-specific fitment checks, symptoms, and replacement notes.
Craftsman
- ZTL7500
- 247.250030
- ZT7000
- ZTS7000
- ZTS7500
- ZTS6000
MTD
- EZT2042
- RZT2552
- ZT1842
- ZT2042
- ZT2242
- ZT2346
- ZT2548
- ZTR 355Z
- ZTR 400Z
Toro / Wheel Horse / Lawn-Boy
- Toro Groundsmaster 117
- Toro Groundsmaster 120
- Toro ProLine 118
- Toro ProLine 120 Series
- 11-32 Lawn Tractor
- 11-38 Lawn Tractor
- 11-42 Lawn Tractor
- 11-44 Lawn Tractor
- 12-32 Lawn Tractor
- Wheel Horse RJ-58
- Wheel Horse RJ-59
- Wheel Horse 12-32 Rear Engine
For broader Toro fitment help, see the Toro PTO Clutch Replacement Guide. For older Toro ProLine applications, see the Toro ProLine PTO Clutch Guide.
Replacing a clutch marked 124833 or 539124833? See the 124833 and 539124833 PTO clutch cross-reference guide for fitment notes, related Toro numbers, and do-not-confuse warnings.
Do Not Confuse This With Similar PTO Clutches
917-04184 is not interchangeable. That Cub Cadet and MTD family uses a smaller 5.25-inch pulley. Although it may look similar, it can cause belt slip, belt squeal, weak blade speed, or poor deck performance if substituted for this 5.35-inch clutch family.
Toro 110-6766 is not the same clutch family. The Toro 110-6766 clutch is commonly associated with newer Toro TimeCutter, Titan, and related Exmark Quest applications. Do not replace a 124833, 539124833, 44-0770, or 54-0220 clutch with a 110-6766 style clutch unless the original clutch number, pulley offset, wiring, and mower application confirm the match.
Toro 117-3869 is a different commercial clutch. That family may use a larger bore, larger pulley, different rotation, and different application path.
Compatibility alert: Measure your original pulley diameter before ordering. A clutch that physically bolts on is not always the correct belt-drive match.
How to Confirm Fitment Before Ordering
- Match the OEM number stamped, engraved, printed, or labeled on the original clutch housing
- Confirm the crankshaft bore is 1 inch
- Confirm the pulley diameter is approximately 5.35 inches
- Confirm CCW rotation from pulley side
- Compare the wiring connector or lead style
- Compare pulley offset and belt groove position
- Check the anti-rotation bracket or stop location
- Confirm mower model, serial number, engine setup, and deck size
If the old clutch number is missing or unreadable, use the PTO clutch fitment guide or email photos to support@ptodirectusa.com before ordering.
Common Symptoms of PTO Clutch Failure
- Blades will not engage
- Blades engage intermittently
- Clutch clicks but does not turn the deck belt
- Burning smell or excessive heat near the clutch
- Bearing noise during engagement
- Blades stop under load in thicker grass
- PTO clutch works cold but fails hot
- Fuse blows or electrical issue appears when the PTO is activated
A worn PTO clutch coil can work when cold, then weaken after the mower heats up. This can cause weak blade engagement, intermittent operation, slipping under load, or blades slowing down after 10 to 30 minutes of mowing.
If the clutch does not click, the fuse keeps blowing, the connector is melted, or a new clutch will not engage after installation, use the PTO clutch wiring, fuse, and switch testing guide before replacing parts again.
Before Installing the Replacement
Before installing a new PTO clutch, inspect the mower for problems that can damage the replacement or make a good clutch seem defective.
- Inspect the deck belt for glazing, cracking, stretching, or contamination
- Confirm belt routing against the mower deck diagram
- Check idler pulleys and blade spindles for drag, wobble, or bearing noise
- Inspect the wiring connector for melting, corrosion, or loose terminals
- Confirm battery voltage and charging system condition
- Clean the crankshaft and inspect the keyway before installation
- Confirm the anti-rotation bracket or stop is aligned correctly
Review the PTO clutch installation guide before installing the replacement. If the old clutch will not slide off the crankshaft, stop and read the PTO clutch stuck on crankshaft guide before forcing removal.
Shop the Correct Replacement
Need a direct replacement for this family? Start with the matching product page for the 759-05064 PTO clutch replacement and confirm your OEM number before ordering.
Browse by brand: Cub Cadet | Toro | Craftsman | MTD
FAQ
Does 759-05064 replace 01008434?
Yes. 759-05064 is the current PTO Direct USA replacement path for compatible mower applications that cross-reference 01008434 or 01008434P. Confirm bore size, pulley diameter, rotation, wiring style, pulley offset, anti-rotation setup, and mower application before ordering.
What does 01008434P mean?
The P suffix usually indicates a packaged service part. It does not usually mean the clutch is mechanically different from 01008434.
Is 124833 replaced by 759-05064?
Yes, 124833 is commonly cross-referenced to the 759-05064 replacement family when the mower application and physical specs match.
Is 539124833 the same replacement path?
In this replacement family, 539124833 is commonly treated as a related service number for the same 124833 clutch group. Confirm the original clutch number and physical specs before ordering.
Does this guide cover 5023100, 1717664, 1720532, or 1757359?
No. Those Simplicity, Snapper, and Ferris-side numbers now belong in the separate 1686880SM PTO clutch cross-reference guide. Use the 1686880SM PTO clutch replacement product path for those numbers when the original clutch and physical specs match.
What specs should I check before ordering?
Confirm the original OEM number, 1-inch crankshaft bore, approximately 5.35-inch pulley diameter, CCW rotation from pulley side, wiring connector style, pulley offset, and anti-rotation bracket position.
What if my mower blades will not engage?
If the engine runs but the blades will not engage, the PTO clutch, wiring, PTO switch, safety switches, battery voltage, deck belt, or spindle system may be involved. Use the PTO clutch won’t engage troubleshooting guide before replacing parts.
Can PTO Direct USA help confirm fitment?
Yes. Email support@ptodirectusa.com with your mower model number, serial number, deck size, original clutch number, and clear photos of the old clutch. For the best fitment help, include photos of the clutch label or stamped number, wiring connector, clutch pulley, anti-rotation bracket, crankshaft area, and deck belt routing.
