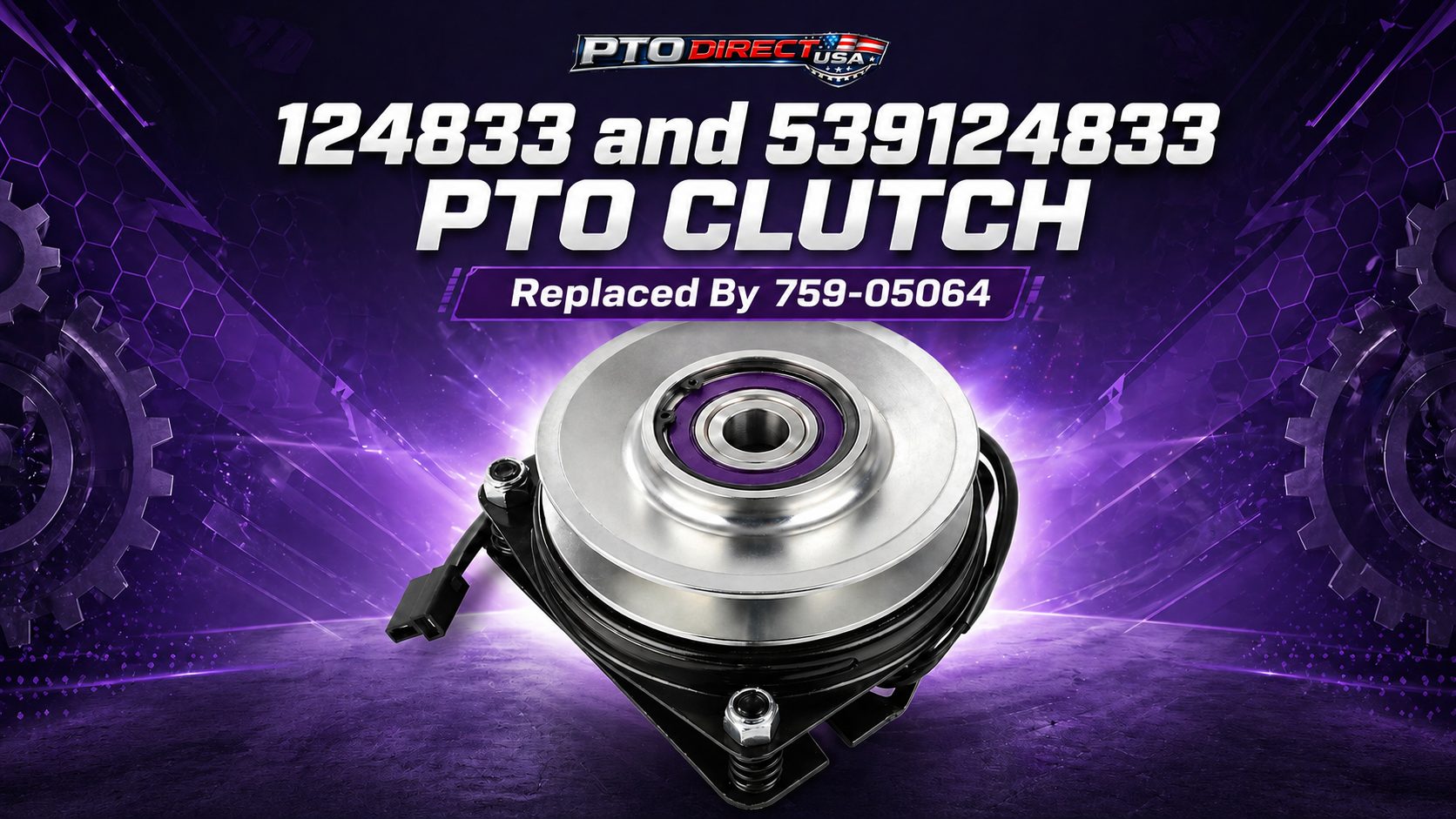

124833 & 539124833 PTO Clutch | Replaced by 759-05064

124833 and 539124833 PTO clutch replaced by 759-05064 for Cub Cadet, MTD, Toro, Wheel Horse, Dixon, Husqvarna, and related mower applications.

The 124833 and 539124833 electric PTO clutch numbers are commonly cross-referenced to the 759-05064 PTO clutch replacement. These numbers appear across older Toro, Wheel Horse, Dixon, Husqvarna, Lawn-Boy, Cub Cadet, MTD, and related mower platforms that use the same 1-inch bore, approximately 5.35-inch pulley, CCW rotation PTO clutch family.

If your original clutch is marked 124833 or 539124833, the 759-05064 replacement may be the correct aftermarket fit when the bore, pulley diameter, rotation, wiring style, anti-rotation bracket, and mower application match. This clutch family also cross-references 01008434 and 01008434P.

Need help confirming the correct PTO clutch? Email support@ptodirectusa.com with your mower model number, serial number, OEM clutch number, and clear photos of the old clutch, wiring connector, pulley, and deck belt routing.

Aftermarket replacement part: This PTO clutch is an aftermarket replacement. OEM names, model names, and part numbers are used for identification and fitment reference only. PTO Direct USA is not affiliated with or endorsed by the original equipment manufacturer.

124833 and 539124833 Replaced by 759-05064

The 124833 and 539124833 part numbers belong to a widely used electric PTO clutch architecture that also includes the 01008434 cross-reference family. Depending on the mower brand, service catalog, or clutch manufacturer, this same general clutch family may appear under several different OEM, service, Warner, Ogura, or aftermarket numbers.

For most shoppers, the key question is simple: Can 124833 or 539124833 be replaced by 759-05064? In many compatible applications, yes. The replacement should still be confirmed by matching the original clutch number, clutch dimensions, rotation, wiring style, and mower platform.

  • Original numbers: 124833, 539124833
  • Current PTO Direct USA replacement path: 759-05064
  • Related cross-reference numbers: 01008434, 01008434P
  • Related Toro / Wheel Horse / Lawn-Boy numbers: 44-0770, 54-0220
  • Common Simplicity / Snapper / Ferris number: 5023100SM

Replacement Specs to Confirm

The 759-05064 replacement path is built around a 1-inch crankshaft bore and approximately 5.35-inch pulley diameter. These specs are critical because a clutch can look similar and still create belt alignment, engagement, or wiring problems if the core dimensions do not match.

  • Crankshaft Bore: 1 inch
  • Pulley Diameter: Approximately 5.35 inches
  • Rotation: CCW from pulley side
  • Operating Speed: Up to 3600 RPM
  • Design: Electric PTO clutch with electromagnetic coil
  • Common Use: Riding mowers, zero-turn mowers, commercial walk-behinds, and selected rear-engine platforms

Fitment warning: Do not order by part number alone if the mower has been modified, previously repaired, or fitted with a non-original clutch. Confirm the bore, pulley diameter, rotation, connector style, anti-rotation bracket position, and belt alignment before installing the replacement.

Common Compatible Applications

The 124833 and 539124833 clutch numbers are most often found in older mower platforms that share the same 1-inch bore, 5.35-inch pulley, CCW electric PTO clutch setup. Application lists can vary by year, deck size, engine configuration, and service history, so always confirm the number on the original clutch.

Toro, Wheel Horse, and Lawn-Boy

  • Toro Groundsmaster 117
  • Toro Groundsmaster 120
  • Toro ProLine 118
  • Toro ProLine 120 Series
  • Wheel Horse RJ-58
  • Wheel Horse RJ-59
  • Wheel Horse 12-32 Rear Engine
  • Lawn-Boy and related 11-32, 11-38, 11-42, 11-44, and 12-32 platforms

Dixon, Husqvarna, and Related Platforms

  • Dixon ZTR applications using 124833
  • Husqvarna and Dixon service-number applications using 539124833
  • Selected Yazoo Kees and related platforms where the original clutch number and specs match

MTD, Cub Cadet, and Craftsman

  • Cub Cadet Z-Force 15, 18, 44, 48, 50, 54
  • Cub Cadet Z-Force Pro 48 and 54
  • Cub Cadet Enforcer 44, 48, 54
  • Cub Cadet Tank M50
  • MTD ZT and RZT platforms using the 01008434 / 759-05064 family
  • Craftsman ZTL7500 and related MTD-built zero-turn models

For broader Toro fitment help, see the Toro PTO Clutch Replacement Guide. For older ProLine applications, see the Toro ProLine PTO Clutch Guide.

Related OEM Part Numbers

The 124833 and 539124833 numbers often appear alongside other OEM numbers in the same replacement family. If your old clutch shows one of the numbers below, it may belong to the same 759-05064 cross-reference group.

Toro, Wheel Horse, Lawn-Boy, Dixon, and Husqvarna

  • 124833
  • 539124833
  • 44-0770
  • 54-0220

MTD, Cub Cadet, Craftsman, and Troy-Bilt

  • 759-05064
  • 01008434
  • 01008434P
  • 1008434

Simplicity, Snapper, Ferris, and Murray

  • 5023100
  • 5023100SM
  • 1717664
  • 1717664SM
  • 1720532
  • 1757359
  • 1757359YP
  • 7063304
  • 7063304YP
  • 7075085
  • 7075085YP

Need the full family breakdown? See the 01008434 / 759-05064 PTO clutch replacement guide.

Warner and Ogura Number Clues

Many original electric PTO clutches were manufactured by Warner Electric or Ogura. The mower brand may list one part number while the clutch body itself shows a manufacturer number. Those stamped or printed manufacturer numbers can be valuable fitment clues.

Common Warner references

  • Warner 5215-18
  • Warner 5217-46
  • Warner 5219-series references in related but not always interchangeable clutch families

Common Ogura references

  • MA-GT-TRO
  • MAGTTRO
  • MA-GT-TROC
  • MAGTTROC
  • MA-GT-JD2
  • MAGTJD2
  • MA-GT-JD11
  • MAGTJD11
  • MA-GT-SN11

If your old clutch has a Warner or Ogura number, use it as a secondary clue, not the only fitment confirmation. The mower application, bore size, pulley diameter, rotation, connector style, and anti-rotation bracket still need to match.

Aftermarket Cross-Reference Numbers

Aftermarket suppliers may list this clutch family under several replacement numbers. These can help confirm that 124833, 539124833, 759-05064, 01008434, 44-0770, and 54-0220 are being treated within the same replacement ecosystem.

  • STENS: 255-210X, 255-336X, 255-348X, 255-349X, 255-350X, 255-940X
  • 8TEN: 810-CPT2303O
  • Xtreme / heavy-duty style references: commonly listed for 759-05064, 01008434, 124833, and related 54-0220 applications

Aftermarket numbering can vary by supplier. Always confirm the physical specs and application, not only the interchange list.

Do Not Confuse 124833 With Newer Toro PTO Clutches

This is the most important fitment warning on this page. The 124833, 539124833, 759-05064, 01008434, 44-0770, and 54-0220 family should not be confused with newer Toro and Exmark clutch families that may look similar in photos.

Toro 110-6766 is not the same clutch family

The Toro 110-6766 clutch is commonly associated with newer Toro TimeCutter, Titan, and related Exmark Quest applications. Although some versions may also use a 1-inch bore and CCW rotation, the pulley offset, deck alignment, connector style, and application family can be different.

Do not replace a 124833, 539124833, 44-0770, or 54-0220 clutch with a 110-6766 style clutch unless the original clutch number, pulley offset, wiring, and mower application confirm the match.

Toro 117-3869 is a different commercial clutch

The Toro 117-3869 commercial clutch family is not interchangeable with this 759-05064 / 01008434 replacement group. It may use a larger bore, larger pulley, different rotation, and higher torque rating depending on the application.

Compatibility alert: Searching only for “Toro PTO clutch” can lead to the wrong part. Match the exact OEM clutch number and physical specs before ordering.

Common Symptoms of a Failing 124833 or 539124833 PTO Clutch

If your mower uses the 124833 or 539124833 clutch family, replacement may be needed when the clutch can no longer engage or hold the mower deck under load.

  • Mower blades will not engage
  • PTO clutch clicks but blades do not spin
  • Deck belt does not move when the PTO is engaged
  • Blades engage, then slow down in thick grass
  • Clutch gets hot or smells burnt
  • Blade engagement becomes intermittent
  • Clutch works cold but fails hot
  • Clutch bearing is noisy, rough, or loose
  • Pulley wobbles or shows heat damage

If your mower blades will not engage at all, start with our PTO clutch won’t engage troubleshooting guide. If the clutch clicks but the blades do not spin, see the PTO clutch clicks but blades won’t spin guide. If the clutch gets hot or smells burnt, use our PTO clutch getting hot or smells burnt guide.

If there is no PTO click, the fuse keeps blowing, the connector is melted, or a new clutch will not engage after installation, use the PTO clutch wiring, fuse, and switch testing guide to test voltage, ground, fuse condition, switch output, relay function, safety interlocks, and clutch coil resistance.

Installation and Burnishing Note

After installing a new electric PTO clutch, follow the mower manufacturer’s service procedure. Many replacement clutches also benefit from a short burnishing process, which helps seat the friction surfaces before full-load mowing.

A common burnishing method is to run the engine at reduced throttle, engage the PTO for a short period, disengage it, and repeat several cycles before mowing under load. This helps the clutch surfaces mate evenly and can reduce early slipping or glazing. Always follow the instructions included with your replacement clutch when available.

Before installation, inspect belt routing, pulley alignment, wiring condition, deck spindles, idlers, and the anti-rotation bracket. A new clutch can fail early if the deck belt is misrouted, a spindle is dragging, or the connector is damaged.

How to Confirm the Correct Replacement

Before ordering the 759-05064 replacement for 124833 or 539124833, check the original clutch carefully.

  • Match the OEM number on the original clutch
  • Confirm the crankshaft bore is 1 inch
  • Measure the pulley diameter, approximately 5.35 inches
  • Confirm CCW rotation from pulley side
  • Compare the wiring connector or lead style
  • Check the anti-rotation bracket position
  • Confirm the mower model, serial number, and deck setup
  • Inspect belt routing and pulley alignment before installation

Not sure where to find the number? Use our PTO clutch fitment guide before ordering.

Shop the 759-05064 Replacement for 124833 and 539124833

If your original clutch is marked 124833 or 539124833 and the core specs match, shop the 759-05064 PTO clutch replacement. This aftermarket clutch is built for the 1-inch bore, approximately 5.35-inch pulley replacement family used across multiple older mower platforms.

Before installation, review the PTO clutch installation guide. If the old clutch is stuck on the crankshaft, read the PTO clutch stuck on crankshaft guide before forcing removal.

Related OEM Cross-Reference Guides

Helpful PTO Clutch Resources

FAQ

Is 124833 replaced by 759-05064?

Yes. 124833 is commonly cross-referenced to the 759-05064 PTO clutch replacement family. It may also appear in older references alongside 01008434 and 01008434P. Confirm the bore, pulley diameter, rotation, wiring style, anti-rotation bracket, and mower application before ordering.

Is 539124833 the same PTO clutch as 124833?

In this replacement family, 539124833 is commonly treated as a related service number for the same 124833 clutch group. Always match the original clutch number and physical dimensions before ordering.

Is 01008434 still related to 124833 and 539124833?

Yes. 01008434 is still a related cross-reference in this clutch family, but the current PTO Direct USA product page for this replacement path is 759-05064.

What mower brands use 124833 or 539124833?

These clutch numbers are commonly associated with older Toro, Wheel Horse, Dixon, Husqvarna, Lawn-Boy, and related mower platforms. Compatible applications depend on deck size, engine setup, wiring, and the original clutch number.

Are 44-0770 and 54-0220 related to this clutch family?

Yes. The 44-0770 and 54-0220 numbers are commonly listed with the Toro, Wheel Horse, and Lawn-Boy side of this same replacement ecosystem. Confirm the original clutch specs before ordering.

Does this fit newer Toro TimeCutter or Titan mowers?

Usually not. Many newer Toro TimeCutter, Titan, and Z-Master mowers use different PTO clutch families, including 110-6766 style applications. Do not order by brand alone. Match the OEM clutch number and core specs from the original clutch.

Is Toro 117-3869 the same as 124833 or 759-05064?

No. Toro 117-3869 is a different commercial clutch family and should not be treated as a replacement for 124833, 539124833, 44-0770, 54-0220, 01008434, or 759-05064 applications.

What specs should I check before ordering?

Confirm the original OEM number, 1-inch crankshaft bore, approximately 5.35-inch pulley diameter, CCW rotation from pulley side, wiring connector style, and anti-rotation bracket position.

What if my original clutch has a Warner or Ogura number?

Warner and Ogura numbers can help confirm fitment, especially if the mower brand number is missing. Use those numbers as clues, but still confirm the mower application, bore, pulley diameter, rotation, wiring, and bracket position before ordering.

What if my mower blades will not engage?

If the engine runs but the blades will not engage, the PTO clutch, wiring, PTO switch, safety switches, battery voltage, deck belt, or spindle system may be involved. Use the PTO clutch won’t engage troubleshooting guide before replacing parts.

Can PTO Direct USA help me confirm fitment?

Yes. Email support@ptodirectusa.com with your mower model number, serial number, OEM clutch number, and clear photos of the old clutch. For the best fitment help, include photos of the clutch label or stamped number, wiring connector, clutch pulley, deck belt routing, and any visible Warner or Ogura numbers on the clutch body.
