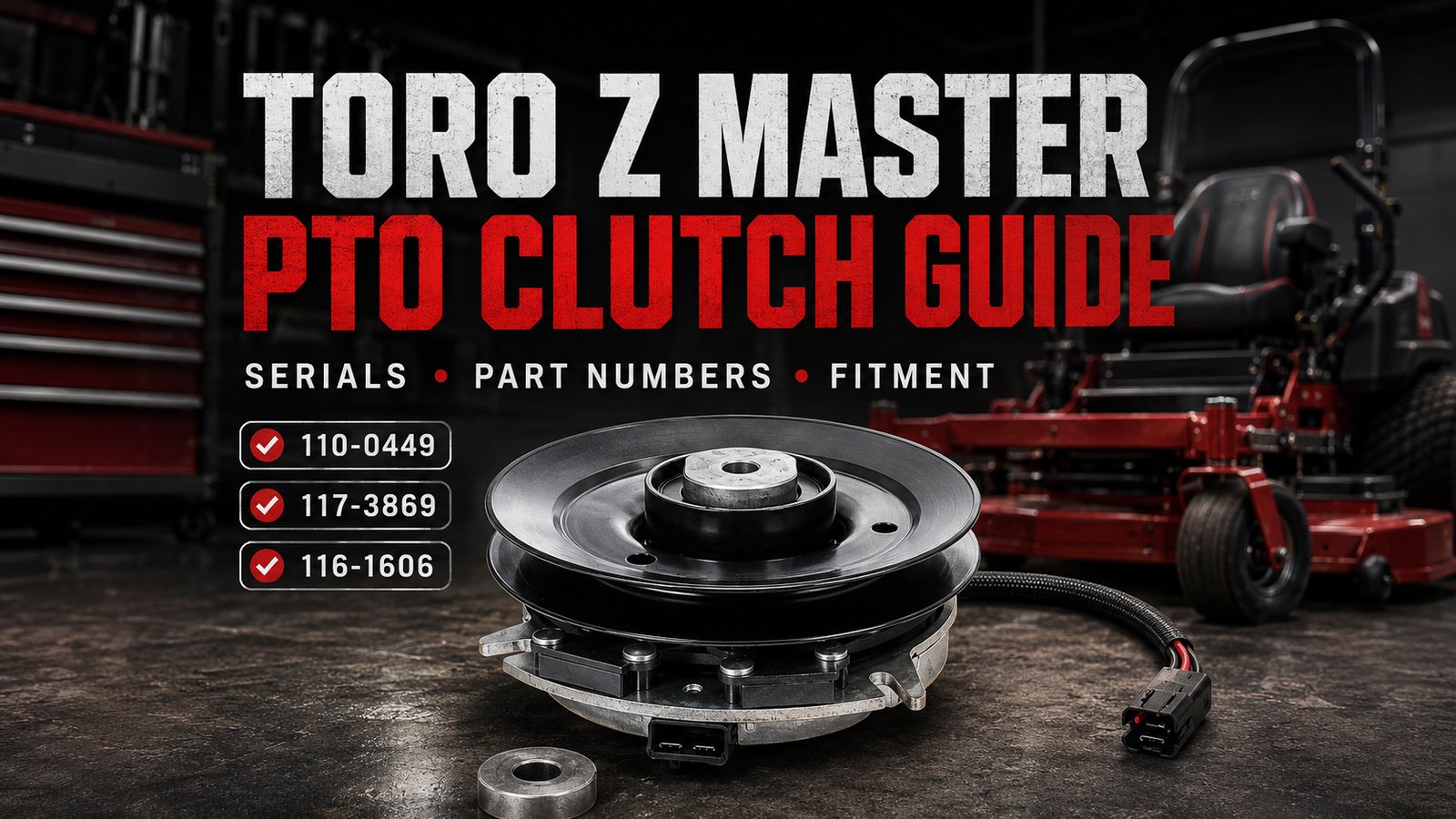

Toro Z Master PTO Clutch Fitment: Part Number Wins
Choosing the correct Toro Z Master PTO clutch replacement is not always as simple as matching the mower model. Several Toro Z Master clutches share similar base specs, including a 1-1/8 inch bore and clockwise rotation, but they may use different pulley profiles, wiring layouts, serial ranges, and aftermarket cross-reference paths.
The safest rule is simple: match the part number on your original PTO clutch first. Use your Toro model and serial number as supporting fitment checks, not as the only deciding factor.
If your old clutch is marked with a Toro, Warner, Xtreme, Stens, or other cross-reference number, order the replacement path that matches that number. If the original label is missing or unreadable, confirm the mower serial number, crankshaft bore, rotation, pulley diameter, belt width, wiring connector, and clutch shape before ordering.
Toro Z Master PTO Clutch Routing Table
Use this table to route common Toro Z Master PTO clutch searches to the correct replacement path.
| Toro OEM Number | Common Models | Serial Range | Known Cross References | Fitment Note |
|---|---|---|---|---|
| 110-0449 | Z Master Z500, Z528 | Z500: 260000001 to 270999999 Z528: 270000001 to 270999999 |
Warner 5218-270, Warner 5218-141, Xtreme X0463 | Use this path when the original clutch is marked 110-0449, 5218-270, 5218-141, or X0463. |
| 117-3869 | Z Master Z500, Z588E | Z500: 310000001 to 311999999 Z588E: 240000001 to 260999999 |
Xtreme X0465, Stens 255-091X | Use this path when the original clutch is marked 117-3869, X0465, or 255-091X. |
| 116-1606 | Z Master Z500, Z557, Z560, Z588E | Z500: 280000001 to 311999999 Z557: 240000001 to 260999999 Z560: 270000001 to 270999999 Z588E: 240000001 to 260999999 |
Warner 5218-209, Warner 5218-168, Xtreme X0708, Stens 255-665X | Use this path when the original clutch is marked 116-1606, 5218-209, 5218-168, X0708, or 255-665X. |
Z500 overlap note: Some Z Master Z500 serial ranges may appear in more than one aftermarket fitment path. When that happens, the original clutch number is the deciding factor. If your old clutch label is readable, match that number first. If it is not readable, confirm the physical specs and contact PTO Direct USA before ordering.
Shop by Toro PTO Clutch Number
- Toro 110-0449 PTO clutch replacement for select Z Master Z500 and Z528 applications
- Toro 117-3869 PTO clutch replacement for select Z Master Z500 and Z588E applications
- Toro 116-1606 PTO clutch replacement for select Z Master Z500, Z557, Z560, and Z588E applications
Why Serial Number Matters on Toro Z Master PTO Clutches
Toro Z Master commercial mowers changed across different production runs. A model name like Z Master Z500 is not always enough to choose the correct clutch. Different serial ranges may use different PTO clutch paths because of changes in deck routing, frame layout, wiring, pulley geometry, or clutch supplier numbers.
Use the serial number to narrow the path, then confirm the original clutch number before ordering. If your mower model and serial range point to more than one possible aftermarket replacement, the original clutch label should decide the match.
Why Pulley Diameter and Pulley Profile Matter
The PTO clutch pulley drives the mower deck belt. Even small changes in pulley diameter or belt groove geometry can affect belt tension, belt tracking, and blade drive performance. A clutch that looks close may still be wrong if the pulley profile, mounting depth, or connector does not match the mower’s original setup.
Before ordering, compare the replacement clutch to the old clutch whenever possible. Check the bore size, rotation, pulley diameter, belt width, wiring connector, and anti-rotation setup.
Do Not Rely on Generic Universal PTO Clutch Listings
Many marketplace listings combine several Toro, Exmark, John Deere, Wright, Hustler, and Dixie Chopper clutch numbers into one broad product page. That can create confusion because similar commercial PTO clutches are not always plug-and-play interchangeable.
A correct aftermarket replacement may be engineered to cover multiple related Toro clutch paths, but it still needs to be matched by the original part number, physical specs, connector, and mower application. Do not assume that every 1-1/8 inch clockwise PTO clutch will fit your Toro Z Master.
How to Confirm Your Original PTO Clutch Number
- Turn the mower off, remove the key, and let the engine and exhaust cool completely
- Locate the PTO clutch mounted under the engine crankshaft
- Look for a metal tag, printed label, stamped number, or Warner manufacturer number on the clutch body
- Write down any Toro, Warner, Xtreme, or Stens number you can read
- Compare the pulley, wiring connector, anti-rotation bracket, and bore size to the replacement product photos
If the old clutch label is unreadable, use the mower model number, serial number, deck size, and clear clutch photos to confirm fitment before ordering.
Common Signs of a Failing Toro Z Master PTO Clutch
- Mower blades will not engage when the PTO switch is pulled
- PTO clutch clicks but the blades do not spin
- Blades engage weakly or slip under heavy grass load
- Blades slow down after the mower heats up
- Clutch works cold, then fails after 10 to 30 minutes
- Burning smell near the clutch or wiring connector
- Damaged, melted, corroded, or loose PTO wiring connector
An old or worn PTO clutch coil can work cold, then weaken after the mower heats up. This can cause intermittent engagement, slipping under load, weak blade engagement, or blades slowing down during mowing.
What to Check Before Ordering
- Original PTO clutch number
- Toro mower model and serial number
- Deck size
- Crankshaft bore size
- Pulley diameter and belt groove style
- Rotation direction
- Wiring connector and harness condition
- Anti-rotation bracket condition
- Deck belt routing, belt wear, idler pulleys, and spindle bearings
If the old clutch will not slide off the crankshaft, do not pry against the pulley or hammer on the new clutch. Read the PTO clutch stuck on crankshaft guide before removal causes crankshaft, keyway, or bearing damage.
Helpful PTO Clutch Guides
- Fitment Guarantee
- PTO clutch installation guide
- PTO clutch won’t engage troubleshooting guide
- PTO clutch clicks but blades won’t spin
- PTO clutch slipping under load
- Full electric PTO clutch catalog
FAQ
Can I choose a Toro Z Master PTO clutch by mower model alone?
No. Use the mower model and serial number to narrow the fitment, but match the original clutch number whenever possible. Some Z Master model ranges overlap across aftermarket clutch paths.
Which PTO clutch fits Toro Z Master Z500?
It depends on the original clutch number and serial range. Common Z500 paths include 110-0449, 117-3869, and 116-1606. If the old clutch label is readable, match that number first.
Is Toro 110-0449 the same as 117-3869?
Not necessarily. They are separate Toro clutch paths with different cross-reference numbers. Use the original clutch number, serial range, and physical specs to choose the correct replacement.
Is Toro 116-1606 the same as 117-3869?
Do not assume they are the same. Some aftermarket coverage can overlap, but the safest match is the number on the original clutch. If your old clutch is marked 116-1606, use the 116-1606 replacement path. If it is marked 117-3869, use the 117-3869 path.
Can a generic 1-1/8 inch clockwise PTO clutch fit my Toro Z Master?
Do not rely on bore size and rotation alone. The pulley profile, connector, mounting depth, anti-rotation setup, and original part number also matter.
What if my PTO clutch label is missing?
Use the mower model number, serial number, deck size, crankshaft bore, pulley diameter, wiring connector, and clear photos of the old clutch to confirm fitment. PTO Direct USA can help verify before you order.
Can PTO Direct USA help me confirm Toro Z Master fitment?
Yes. Email support@ptodirectusa.com with your mower model number, serial number, deck size, original clutch number, and clear photos of the old clutch. Include photos of the clutch label, wiring connector, pulley, anti-rotation bracket, and crankshaft area.
