John Deere X300 Model PTO Clutch Replacement Guide

April 30, 2026

John Deere X300 PTO clutch replacement guide with AM141536 fitment notes, mower deck component checks, belt references, blade references, spindle notes, PTO switch troubleshooting, and maintenance part guidance.

If your John Deere X300 blades are not engaging, slipping under load, cutting inconsistently, or making noise when the deck is engaged, the issue may be related to the electric PTO clutch or one of the supporting mower deck components.

This guide focuses specifically on John Deere X300 PTO clutch fitment and related parts to inspect before ordering, including mower deck belts, blades, spindle assemblies, idler pulleys, PTO switch components, and filters.

Many John Deere X300 applications use the AM141536 PTO clutch family, which also replaces earlier OEM numbers including AM134397 and AM143390. Before ordering, match the OEM number stamped on your original clutch and compare the key specs.

The X300 is part of the broader John Deere X300 Series platform. For a wider overview of related models, shared clutch-family fitment, and platform-level replacement notes, see our John Deere X300 Series PTO Clutch Replacement Guide.

John Deere X300 PTO Clutch Fitment Notes

The John Deere X300 commonly uses the AM141536 PTO clutch family. This clutch family is widely used across X300 applications and is commonly associated with earlier or related OEM numbers including AM134397, AM143390, AM136787, AM137323, AM146088, and AUC16267.

For best fitment, compare your original clutch with the replacement before installation. Key specs to check include the 1-inch crankshaft bore, approximately 5.5 to 5.6-inch pulley diameter, CCW rotation, 2-wire connector style, and anti-rotation bracket position.

For full OEM cross-reference coverage, see the AM141536 PTO clutch fitment guide.

Correct PTO Clutch Replacement for John Deere X300

For many John Deere X300 lawn tractor applications, the correct PTO clutch replacement is:

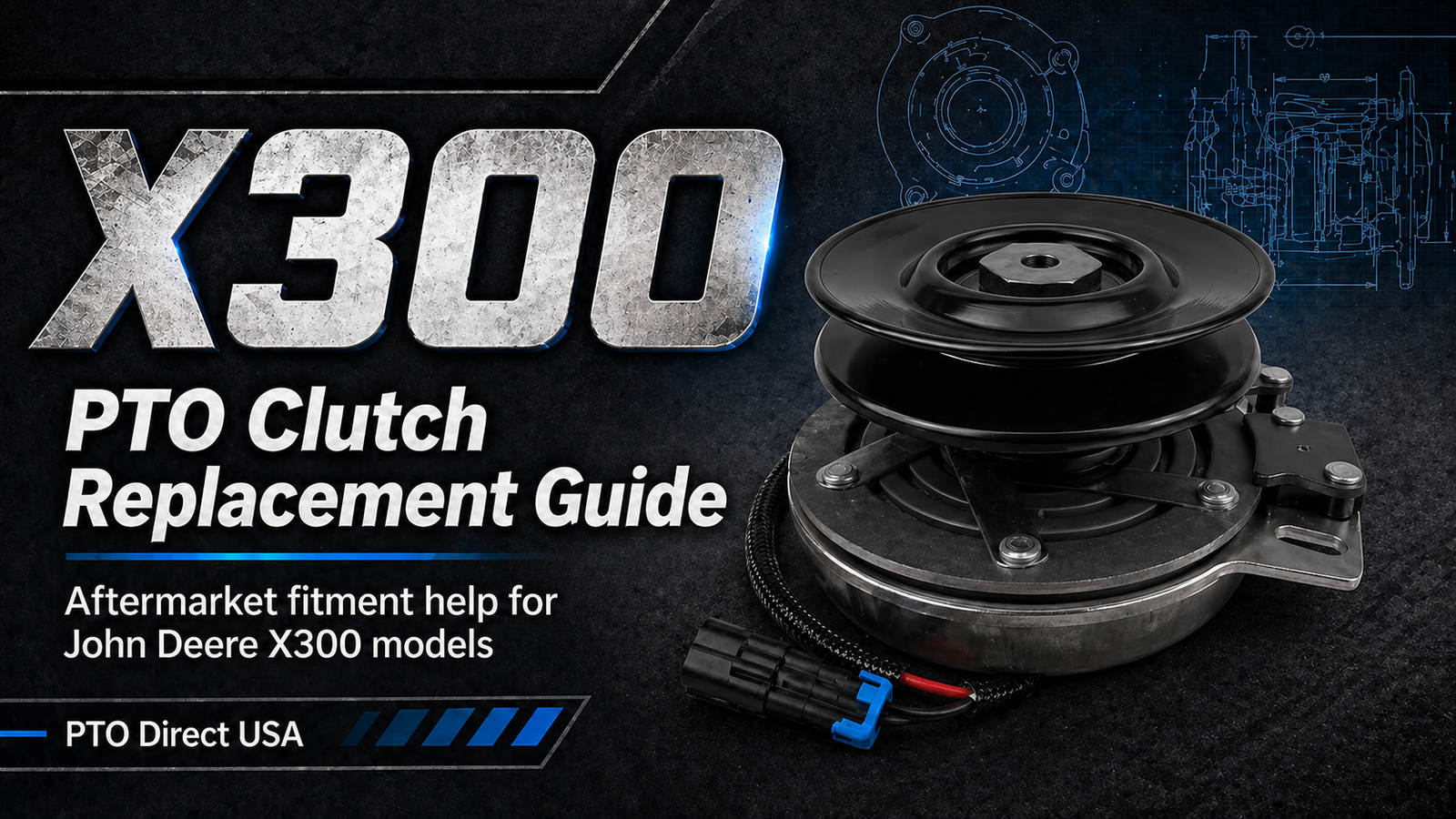

AM141536 PTO Clutch Replacement

This PTO clutch family is commonly used to replace the following OEM numbers:

AM141536
AM134397
AM143390
AM136787
AM137323
AM146088
AUC16267

The AM141536 clutch platform is designed to restore smooth blade engagement, consistent torque transfer, and reliable mower deck operation when the original PTO clutch is worn or failing.

Common Signs of PTO Clutch Failure on a John Deere X300

Blades will not engage when the PTO switch is activated
Blades engage intermittently or feel weak under load
Burning smell near the clutch or belt area
Squealing, grinding, or rattling when the deck is engaged
Loss of blade speed in heavy grass
Uneven or inconsistent cut quality
PTO fuse blows or clutch does not click when powered

If the clutch receives power but does not click, engage, or hold under load, the internal coil or clutch assembly may be failing. If there is no power at the clutch connector, inspect the PTO switch, fuse, wiring, and safety interlock system before replacing the clutch.

John Deere X300 Deck Size and Parts Notes

The John Deere X300 was commonly paired with multiple mower deck configurations, including 38-inch, 42-inch, and 48-inch decks. Supporting deck components can vary by deck size, deck type, serial number, and production configuration.

When diagnosing blade engagement problems, inspect the full deck drive system along with the PTO clutch. Worn belts, loose idlers, failing spindles, damaged pulleys, or dull blades can create symptoms similar to PTO clutch failure.

38-Inch Deck Parts to Check

For John Deere X300 models equipped with a 38-inch deck, common parts to inspect include the mower deck belt, blade set, spindle assemblies, gauge wheels, and idler pulleys.

PTO clutch: AM141536 clutch family
Deck belt reference: M154601
Alternate belt reference: M155525 on certain configurations
Standard blade set reference: AM141039
Mulching blade set reference: AM141040
Bagging blade set reference: AM141041
Spindle assembly reference: AM143469
PTO switch reference: AM135131

Some 38-inch deck belt references may depend on deck configuration and belt tensioner setup. Compare your original belt and deck layout before ordering replacement deck parts.

42-Inch Deck Parts to Check

For John Deere X300 models equipped with a 42-inch deck, common parts to inspect include the PTO clutch, deck belt, blade set, spindle assemblies, idler pulleys, and tensioner components.

PTO clutch: AM141536 clutch family
Deck belt reference: M154621
42M mulch deck belt reference: M154897 on certain configurations
Standard blade set reference: AM141032
Mulching blade set reference: AM141033
Bagging blade set reference: AM141034
Spindle assembly reference: AM143469
Gauge wheel reference: M111489
PTO switch reference: AM135131

The 42-inch deck is one of the most common X300 configurations, but belt and blade selection can change depending on whether the mower uses a standard side-discharge deck or a dedicated mulch deck.

48-Inch Deck Parts to Check

For John Deere X300 models equipped with a 48-inch deck, inspect both the PTO drive path and the spindle-to-spindle belt system. The 48-inch deck may use multiple belts and three spindle assemblies.

PTO clutch: AM141536 clutch family
Primary deck belt reference: M172924 on certain later configurations
Secondary deck belt reference: M154958
Standard blade reference: M145476
Mulching blade reference: M127673
Blade set reference: UC22009
Spindle assembly reference: AM143469
Front anti-scalp roller reference: M113955
PTO switch reference: AM135131

Because the 48-inch deck may use separate primary and secondary belt systems, identify which belt you are replacing before ordering. A PTO-to-deck belt and a spindle drive belt are not the same part.

PTO Switch and Electrical Troubleshooting

If your John Deere X300 PTO clutch does not engage, the clutch may not be the only possible cause. The PTO engagement circuit also depends on the switch, wiring, fuse, and safety interlock system.

PTO switch reference: AM135131
Ignition switch references: AM133596 or AM133597 on certain configurations
Seat switch references: GY20073 or AMT469 on certain configurations
RIO / reverse switch reference: LVA13307 on certain configurations

A simple diagnostic step is to check for 12V power at the clutch connector when the PTO switch is activated. If power is present and the clutch does not click or engage, the clutch assembly may be failing. If no power is present, inspect the PTO switch, fuse, wiring, and safety switches first.

Filters and Maintenance Parts for John Deere X300

Maintenance parts for the John Deere X300 can vary by Kawasaki engine type. Early X300 models are commonly associated with FH-series Kawasaki engines, while later models may use FS-series engines.

Early engine maintenance kit reference: LG256
Later engine maintenance kit reference: LG265
Oil filter references: AM107423 or AM125424 depending on engine
Fuel filter reference: AM116304
Spark plug references: TY6081 or M805853 depending on engine

Before ordering filters, confirm the engine model on your tractor. Engine type can affect oil filter, air filter, pre-filter, and spark plug selection.

Other John Deere X300 Wear Parts to Inspect

Blade engagement problems are not always caused by the PTO clutch alone. When replacing the clutch, it is a good time to inspect the surrounding deck and drive components.

Deck idler pulley references: AM135773 and AM135957
Traction idler pulley references: AM134501 and AM134502
Deck tensioner spring reference: M155068
Gauge wheel reference: M111489
Traction belt reference: M144044 on many later configurations
Battery references: TY25878 or TY25221 depending on serial range

If your mower has belt squeal, vibration, poor blade speed, or uneven cut quality, inspect the belt path, pulleys, spindle bearings, and blade condition before assuming the PTO clutch is the only issue.

Where Is the PTO Clutch on a John Deere X300?

The electric PTO clutch is mounted directly beneath the engine on the crankshaft. It sits above the mower deck belt system and engages the blades when the PTO switch is activated.

Inspection usually requires access from underneath the mower. Safely raising the tractor or removing the mower deck can make it easier to view the clutch, wiring connector, anti-rotation bracket, belt path, and pulley condition.

How to Confirm Fitment Before Ordering

The most reliable way to confirm the correct PTO clutch is to match the OEM part number stamped on your original clutch.

If the number is worn, missing, or unreadable, use your mower’s model number, serial number, deck size, and original component measurements to confirm compatibility.

Before installing a replacement PTO clutch, compare:

OEM part number
Crankshaft bore size
Pulley diameter
Rotation direction
Connector style
Anti-rotation notch or bracket position
Overall clutch height and mounting profile

Need Help Finding the Right X300 Part?

If you are not sure which PTO clutch, belt, blade, spindle, switch, or filter fits your John Deere X300, send us your mower model, serial number, deck size, and the part number from your original component.

PTO Direct USA can help point you toward the correct replacement before you order.

Helpful information to send:

Mower model: John Deere X300
Serial number or PIN
Deck size: 38", 42", or 48"
Part number from the original clutch, belt, blade, spindle, or switch
Photos of the old part, mower ID tag, or deck sticker if available

Shop John Deere X300 PTO Clutch Replacements

If your John Deere X300 uses the AM141536 clutch family, shop the AM141536 PTO clutch replacement to restore smooth blade engagement and reliable cutting performance.
