Why PTO Clutch Rotation Matters
PTO clutch rotation tells you the direction the clutch is designed to spin during mower deck operation. Most electric PTO clutches are built for either clockwise rotation or counter-clockwise rotation. These are often written as CW and CCW.
Rotation is not just a label. The internal springs, brake system, and torque path inside the clutch are designed around a specific direction. Installing the wrong rotation PTO clutch can damage the clutch quickly, even if the bore size, pulley diameter, and wiring look close.
Fitment rule: match the original clutch number first, then confirm rotation, bore size, pulley diameter, connector style, and anti-rotation setup before ordering.

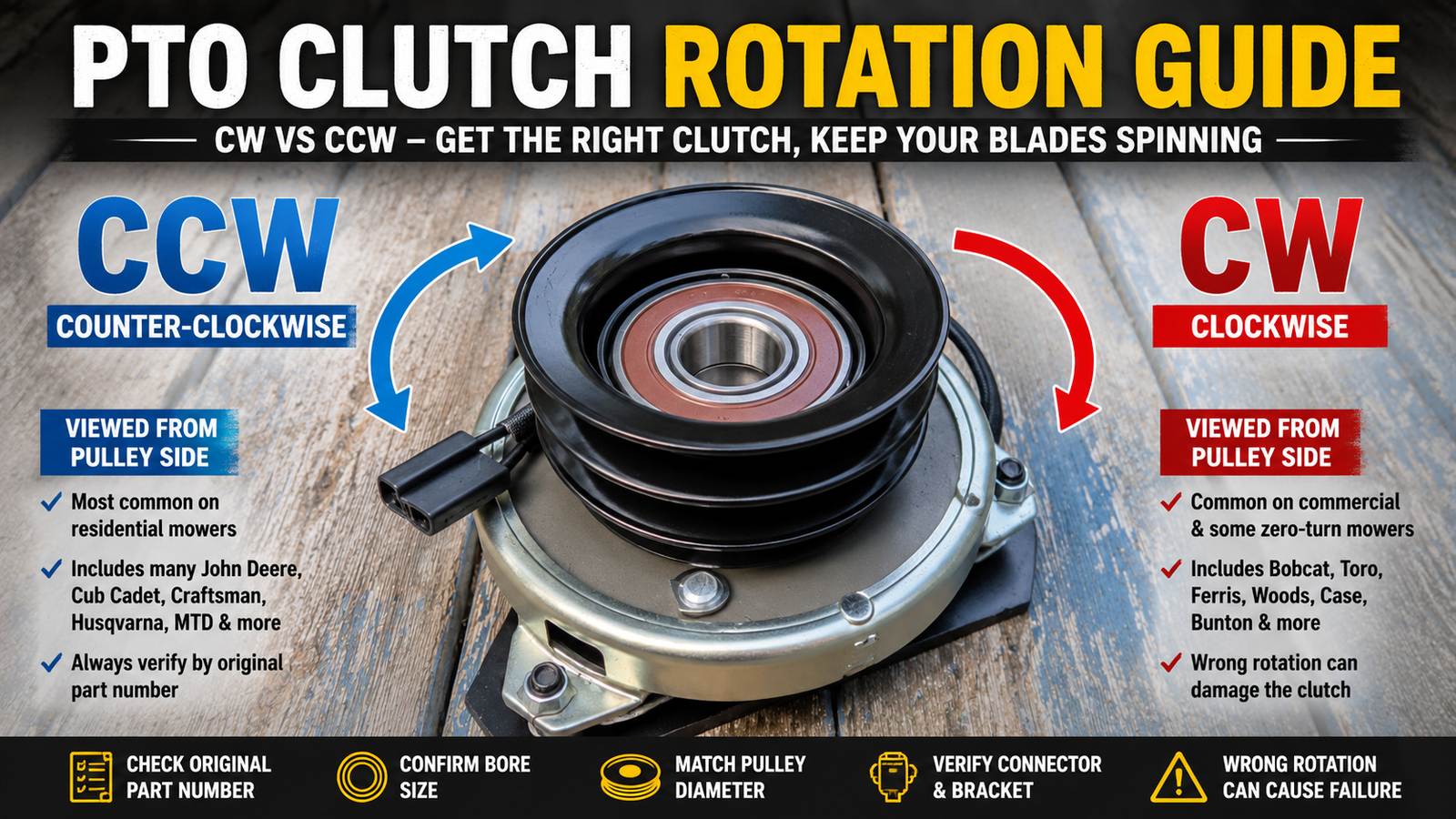

CW vs CCW PTO Clutch Rotation
| Rotation | Meaning | Common Written Forms | Fitment Warning |
|---|---|---|---|
| CW | Clockwise rotation | CW, clockwise, clockwise from pulley side | Use only on applications that call for a clockwise PTO clutch |
| CCW | Counter-clockwise rotation | CCW, counter clockwise, counter-clockwise from pulley side | Use only on applications that call for a counter-clockwise PTO clutch |
Many suppliers describe rotation as viewed from the pulley side of the clutch. If your source does not say which side the rotation is viewed from, verify by original part number instead of guessing.
Common Clockwise PTO Clutch Paths
These are examples of clockwise PTO clutch replacement paths. Always confirm your original part number and physical specs before ordering.
| Product Path | Common Brands / Models | Key Notes | Product Link |
|---|---|---|---|
| 2722016 / Warner 5219-14 | Bobcat, Bunton, Woods, Case, Jacobsen, Ransomes | 1-1/8" bore, 6-5/16" pulley, CW rotation | 2722016 PTO clutch replacement |
| TCA12522 | John Deere 737, 757, 777, 797, M653, M655, M665 | John Deere commercial ZTrak path, verify serial and original clutch number | TCA12522 PTO clutch replacement |
| TCA23182 | John Deere Quik-Trak 648R, 652B, 652R, 661R | Commercial Quik-Trak path, verify original clutch number and specs | TCA23182 PTO clutch replacement |
Common Counter-Clockwise PTO Clutch Paths
These are examples of counter-clockwise PTO clutch replacement paths. Many residential and commercial mower clutches use CCW rotation, but that does not make them interchangeable.
| Product Path | Common Brands / Models | Key Notes | Product Link |
|---|---|---|---|
| 917-04526A / Warner 5219-94 | Cub Cadet, MTD, Troy-Bilt, Craftsman | 1" bore, 6" pulley, CCW rotation | 917-04526A PTO clutch replacement |
| 917-05209 / Warner 5219-177 | Cub Cadet XT1, XT2, RZT, ZT1, ZT2, Troy-Bilt Mustang XP | 1" bore, 6" pulley, CCW rotation, MTD-built mower path | 917-05209 PTO clutch replacement |
| 917-05001 / Warner 5219-25 | Cub Cadet GT1554, SLT1554, LGT1050, Troy-Bilt GT / GTX | 1" bore, 6" pulley, CCW rotation, heavy-duty 50" / 54" deck path | 917-05001 PTO clutch replacement |
| 132732 / 539132732 / Warner 5219-69 | Husqvarna, AYP, Dixon, Yazoo Kees | 1" bore, CCW rotation, multi-brand fitment path | 132732 PTO clutch replacement |
| TCA15092 / TCA15488 | John Deere 7H17, 7G18, 7H19 commercial walk-behind mowers | 1" bore, CCW rotation, John Deere commercial walk-behind path | TCA15092 PTO clutch replacement |
| GDA10017 / Warner 5219-4 | John Deere, Great Dane, EverRide, Lesco, Landoll | 1" bore, 6" pulley, CCW rotation, pigtail lead path | GDA10017 PTO clutch replacement |
| AM141978 / Warner 5219-126 | John Deere Z625, Z645, Z655 Eztrak | 1" bore, CCW rotation, John Deere Eztrak path | AM141978 PTO clutch replacement |
| AM131779 | John Deere 335, 345, GX335, GX345, GX355 early serial path | 1-1/8" bore, CCW rotation, verify serial and original clutch number | AM131779 PTO clutch replacement |
| AM133209 | John Deere 325, 335, 345, GX335, GX345, GX355 later serial path | 1" bore, CCW rotation, verify original clutch number | AM133209 PTO clutch replacement |
Important: these tables are routing examples, not a universal fitment list. Rotation must be matched with bore size, pulley diameter, belt width, connector style, anti-rotation setup, and original part number.
How to Confirm PTO Clutch Rotation
- Start with the original clutch number whenever possible.
- Look for a Warner, Ogura, Xtreme, OEM, or aftermarket number stamped or printed on the old clutch.
- Check the product specs for CW or CCW rotation.
- Confirm whether the supplier defines rotation from the pulley side.
- Compare the old clutch wiring connector, anti-rotation tab, and pulley before ordering.
- If the mower has been repowered or modified, verify the crankshaft, deck belt routing, and original clutch path carefully.
If your old clutch is rusted or stuck on the crankshaft, do not pry against the pulley or hammer the clutch body. Read the PTO clutch stuck on crankshaft guide before removal causes crankshaft, bearing, or keyway damage.
What Happens If PTO Clutch Rotation Is Wrong?
Internal spring damage
PTO clutch internals are designed to load in a specific direction. The wrong rotation can stress the internal spring system incorrectly and damage the clutch during engagement or braking.
Brake and engagement problems
A clutch built for the wrong rotation may engage poorly, brake incorrectly, slip, overheat, or fail quickly under mower deck load.
Anti-rotation damage
If the rotation and anti-rotation setup do not match the mower, the clutch body can fight the frame stop or bracket. That can damage the wiring, bracket, or clutch housing.
Rotation Is Only One Fitment Check
Even if rotation is correct, the clutch can still be wrong. Before ordering, confirm all of these:
- Original part number: OEM, Warner, Xtreme, Ogura, or other number on the old clutch
- Rotation: CW or CCW, usually viewed from the pulley side
- Crankshaft bore: 1", 1-1/8", or another confirmed size
- Pulley diameter: Match the pulley size and belt groove profile
- Belt width: 1/2", 5/8", or A/B belt compatibility
- Connector style: Integral plug, pigtail lead, or matching harness
- Anti-rotation setup: Bracket, slot, or stop pin alignment
- Deck and serial range: Some mowers split by deck size, engine, or serial number
Need help with bore size? Read the 1-inch vs 1-1/8 inch PTO clutch bore guide.
Why Model Number Alone Can Be Risky
A mower model name can cover multiple years, deck sizes, engines, serial ranges, and wiring changes. That means two mowers with similar model numbers can use different PTO clutches.
For example, a PTO clutch may share the same bore size and rotation as another clutch but still use a different pulley diameter, connector, wire length, or anti-rotation bracket. Use the original clutch number and physical specs to make the final fitment decision.
Related Fitment Guides
- Warner 5219 PTO clutch cross-reference guide
- 1-inch vs 1-1/8 inch PTO clutch bore guide
- Fitment Guarantee
- PTO clutch installation guide
- PTO clutch won’t engage troubleshooting guide
- PTO clutch clicks but blades won’t spin
- PTO clutch slipping under load
- Full electric PTO clutch catalog
FAQ
What does CW mean on a PTO clutch?
CW means clockwise rotation. Most suppliers define rotation from the pulley side of the clutch, but always verify by original part number when possible.
What does CCW mean on a PTO clutch?
CCW means counter-clockwise rotation. A CCW clutch should only be used on applications that call for counter-clockwise rotation.
Can I use a clockwise PTO clutch instead of counter-clockwise?
No. CW and CCW PTO clutches should not be treated as interchangeable. The wrong rotation can damage the clutch internals, brake system, wiring, or anti-rotation setup.
How do I know which rotation my mower uses?
Check the original PTO clutch number first. Then confirm the product specs for CW or CCW rotation. If the original clutch label is missing, verify the mower model, serial number, crankshaft bore, pulley diameter, connector, and anti-rotation setup before ordering.
Is rotation enough to confirm PTO clutch fitment?
No. Rotation is only one fitment check. You also need to confirm bore size, pulley diameter, belt width, connector style, anti-rotation setup, deck size, serial range, and original part number.
Why do two PTO clutches look the same but have different rotation?
Many electric PTO clutches share similar housings, pulleys, and connectors. The internal spring and brake design can still be built for different rotation directions, so visual matching alone is risky.
Can PTO Direct USA help confirm rotation before I order?
Yes. Email support@ptodirectusa.com with your mower model number, serial number, deck size, original clutch number, and clear photos of the old clutch. Include photos of the clutch label, pulley, connector, anti-rotation bracket, and crankshaft area.
